وحدة IO-4POE PoE PSE مع IEEE 802.3af/عند الإخراج | CoreIPC

نموذج	IO-4POE
نوع المنتج	PoE PSE Module
Input Power	12V DC
PoE Standards	IEEE 802.3af / IEEE 802.3at
PoE Output Ratings	IEEE 802.3af: 48V DC, up to 350 mA, 15.4W maximum; IEEE 802.3at: 48V DC, up to 750 mA, 30W maximum
Power Input Interface	1 × 2 × 4-pin female header, POE_PWR1, 2.54 الملعب مم
PoE Output Interfaces	2 × 2 × 4-pin female headers, POE1 and POE2, 2.54 الملعب مم
Control Signal	PCTL
أبعاد	80 مم × 30 مم × 18 مم

إرسال الاستفسار الدردشة الحية

ال IO-4POE is a PoE PSE module designed to provide 48V DC PoE power output through its dedicated PoE headers. It accepts a 12V DC supply through the POE_PWR1 input header and supports IEEE 802.3af and IEEE 802.3at PoE output modes.

For IEEE 802.3af output, the module provides 48V DC at up to 350 mA, with a maximum output power of 15.4W. For IEEE 802.3at PoE+ output, it provides 48V DC at up to 750 mA, with a maximum output power of 30W. POE_PWR1 is a 2 × 4-pin female header with a 2.54 mm pitch and includes 12V, GND, and PCTL signals. Two onboard 2 × 4-pin female headers, POE1 and POE2, provide the documented 48V output signals, MPS_OUT signals, and GND connections; both use a 2.54 الملعب مم.

The module measures 80 مم × 30 مم × 18 مم.

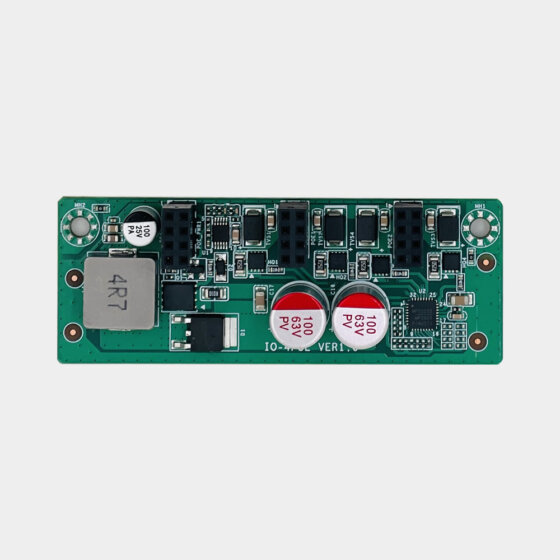

Top view of the IO-4POE PoE PSE module.

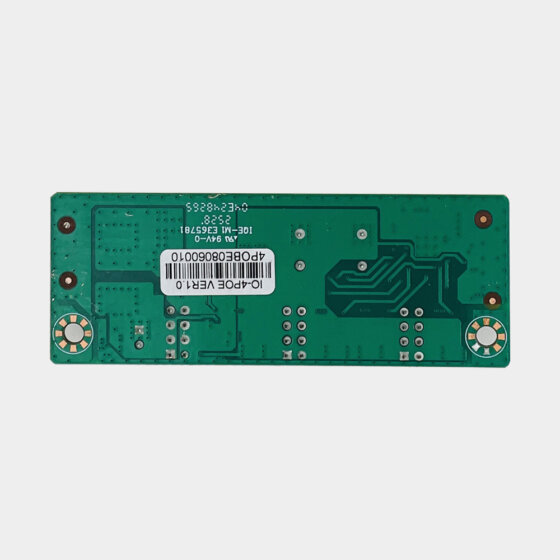

Bottom view of the IO-4POE PoE PSE module.

Parameter	Specification
نموذج	IO-4POE
نوع المنتج	PoE PSE Module
Input Power	12V DC
POE_PWR1	1 × 2 × 4-pin female header for module power input, 2.54 الملعب مم
POE_PWR1 Signals	12V, GND, and PCTL
PoE Standard	IEEE 802.3af
IEEE 802.3af Output	48V DC, up to 350 mA, 15.4W maximum
PoE+ Standard	IEEE 802.3at
IEEE 802.3at Output	48V DC, up to 750 mA, 30W maximum
POE1 / POE2	2 × 2 × 4-pin female headers for 48V power output, 2.54 الملعب مم
POE1 / POE2 Signals	VOUT_48V, MPS_OUT1/2/3/4, and GND
أبعاد	80 مم × 30 مم × 18 مم
