The CoreIPC PanelPro 15 is an Industrial Panel PC featuring a 15.6 Inch capacitive touchscreen display for industrial and embedded applications. Powered by multiple Intel® Celeron® and Intel® Core™ processor options, it provides reliable computing performance for demanding industrial environments.
With 1920 × 1080 دقة, a 16:9 aspect ratio, 300 cd/m² brightness, and full viewing angle, plus four USB ports, one Gigabit LAN port, two RS232 ports, اتش دي ام اي, VGA, و 3.5 mm audio ports, this system supports flexible integration into industrial equipment and control systems.
Designed with an aluminum alloy middle frame and rear cover, embedded, wall-mount, or desktop installation, and fanless passive cooling, the CoreIPC PanelPro 15 provides a dependable platform for OEM and ODM projects.
الميزات الرئيسية
- Multiple Intel® Celeron® and Intel® Core™ processor options
- الكمبيوتر اللوحي الصناعي
- 15.6 Inch capacitive touchscreen
- 1920 × 1080 دقة, 16:9 aspect ratio, 300 cd/m² brightness, and full viewing angle
- One Gigabit LAN port with Wake-on-LAN and PXE support
- Two RS232 ports; up to six RS232 ports available, with two configurable as RS485
- Aluminum alloy middle frame and rear cover with embedded, wall-mount, and desktop installation

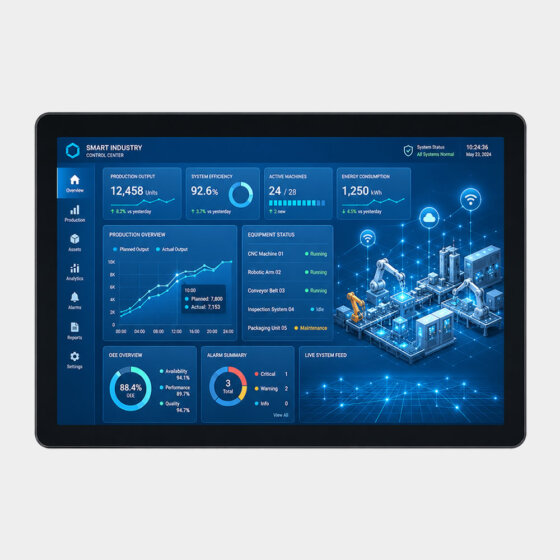

Straight front view of an industrial touch panel PC with a black bezel and active display.
Front view of the CoreIPC PanelPro 15 with the display off.

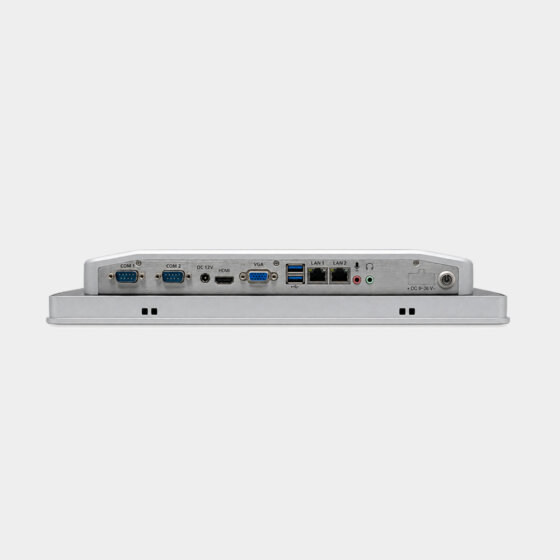

Rear I/O view of the CoreIPC PanelPro 15 industrial panel PC.

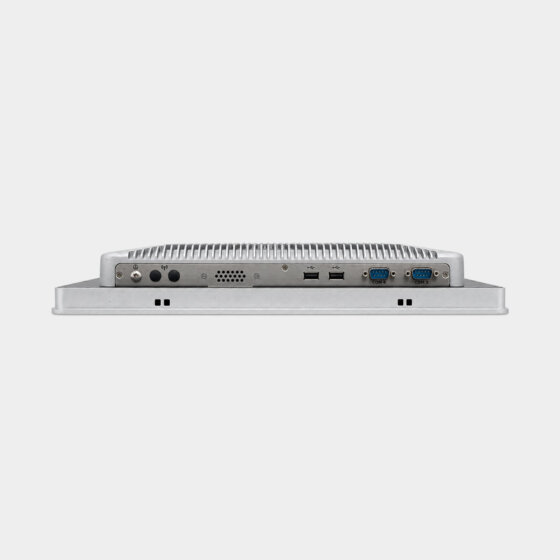

Secondary I/O and rear heat sink view of the CoreIPC PanelPro 15.

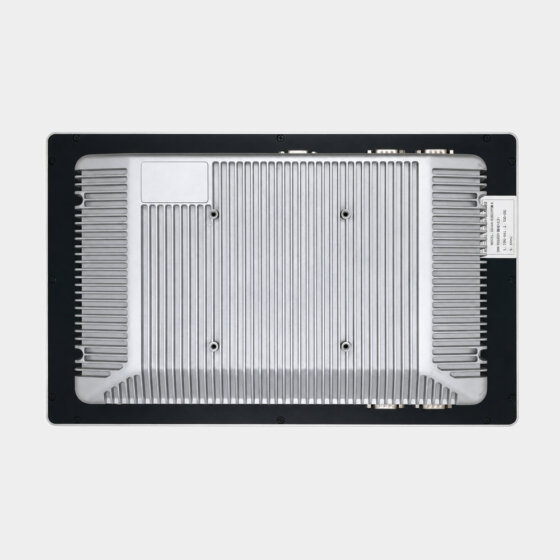

Rear heat sink view of the CoreIPC PanelPro 15 industrial panel PC.

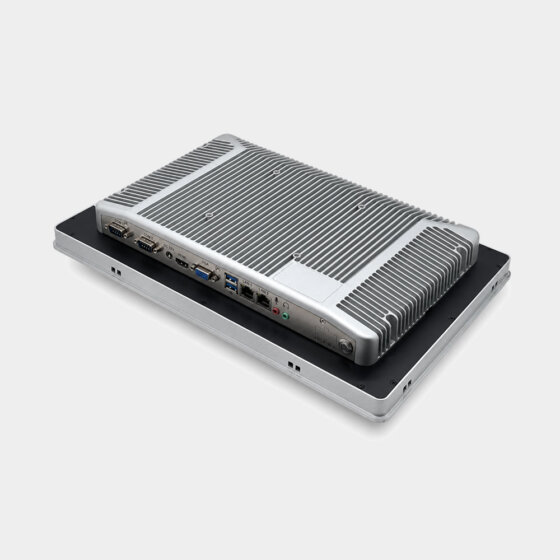

Angled rear view showing the heat sink and I/O interfaces of the CoreIPC PanelPro 15.
Technical documents for this product are being prepared and will be available soon.
CoreIPC provides configurable industrial Panel PC platforms and OEM/ODM project support for embedded and industrial equipment applications.
لماذا تختار CoreIPC
- Industrial Touch Interface
- Fanless Thermal Design
- Embedded Clip Mount Installation
- خيارات المعالج المرنة
- اتصال جيجابت LAN
- Industrial Serial Communication
س1. What screen size and touch technology does the CoreIPC PanelPro 15 use?
The system uses a 15.6 Inch capacitive touchscreen.
Q2. What display specifications are provided?
It provides 1920 × 1080 resolution with a 16:9 aspect ratio, 300 cd/m² brightness, and a full viewing angle.
س3. What processor options are available?
Supported processors include Intel® Celeron® J1800, J1900, and J4125, plus Intel® Core™ i3-3217U, i5-3317U, i5-4300U, i7-4600U, i5-7200U, and i5-10210U.
س 4. What memory and storage configurations are supported?
Memory options are 4GB, 8GB, and 16GB. SSD storage options are 64GB, 128GB, 256GB, and 512GB.
س5. How is the panel PC installed and what cutout is required?
It supports embedded installation with clip mounting, as well as wall-mount and desktop installation. The required cutout dimensions are 381.1 × 238.1 mm with R9.6 corners.
س6. What LAN, USB, and display interfaces are available?
The standard configuration includes one Gigabit LAN port with Wake-on-LAN and PXE support, four USB ports, one HDMI port, one VGA port, و 3.5 mm headphone and microphone ports. LAN is expandable to two Gigabit ports and USB to six ports.
س7. How many serial ports are available and is RS485 supported?
The standard configuration includes two RS232 ports and supports expansion to up to six RS232 ports. Two ports can be configured as RS485.
Q8. What power, operating system, and environmental specifications are provided?
The standard power input is DC 12V, with an optional DC 9–36V wide-voltage module. Supported operating systems are Windows 7, ويندوز 10, and Linux; the operating temperature range is -10°C to 60°C.
