P36-12V-240 Módulo de alimentación de amplio voltaje de 9 a 36 V | CoreIPC

Rango de voltaje de entrada	9-36 VCC (Típico: 19V / 24V / 36V)
Voltaje de salida	12En DC
Corriente de salida máxima	20A
Potencia máxima de salida	240W.
Protección	Protección de polaridad inversa
Interfaces de entrada	1 × Terminal Phoenix con bloqueo de 4 pines (5.08 paso mm); 2 × encabezado de pines de 6 pines (2.54 paso mm)
Interfaces de salida	2 × Conector de salida de alimentación ATX de 2 pines (10A); 2 × Conector de salida de alimentación ATX de 3 pines (20A)
Dimensiones	148 milímetros × 35 milímetros × 35.5 milímetros
Montaje	Dos orificios de montaje diagonales o montaje en pared del chasis con accesorios de montaje

Enviar consulta Chat en vivo

El P36-12V-240 is a 9–36V DC wide-voltage power module developed by CoreIPC for supporting industrial computer and embedded applications. It converts a 9–36V DC input to a regulated 12V DC output and supports up to 20A output current with a maximum output power of 240W.

The module supports typical 19V, 24V, and 36V input voltages and includes reverse-polarity protection. Two input interface options are provided: a 1 × 4-pin locking Phoenix terminal with a 5.08 mm pitch and a 2 × 6-pin input header with a 2.54 paso mm. For 12V output connections, the module provides 2 × 2-pin ATX power output connectors rated for 10A and 2 × 3-pin ATX power output connectors rated for 20A. A 1 × 4-pin system fan header and a 1 × 4-pin output control switch header are also included.

Measuring 148 milímetros × 35 milímetros × 35.5 milímetros, the module can be secured inside a chassis through two diagonal mounting holes or installed on the chassis wall using mounting hardware.

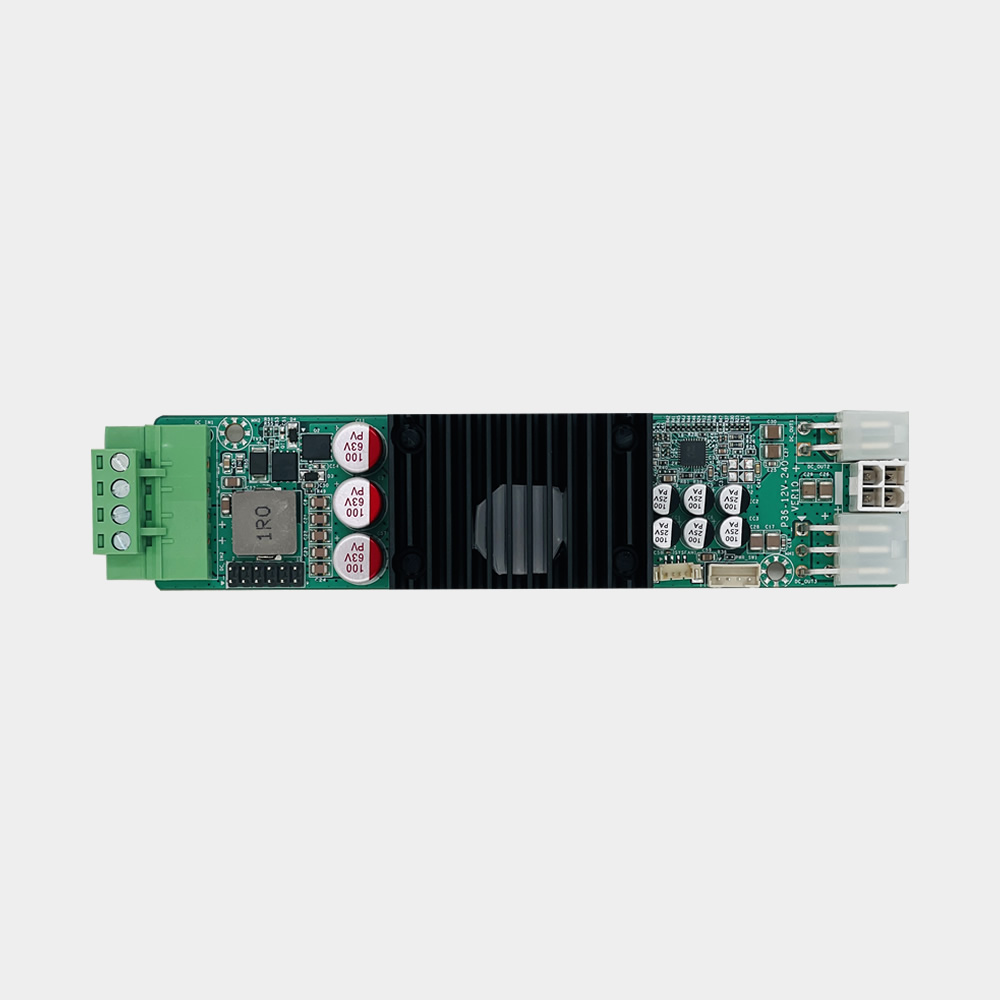

Top view of the P36-12V-240 wide-voltage power module.

Side view of the P36-12V-240 9–36V wide-voltage power module with heatsink and power connectors

Side view of the P36-12V-240 wide-voltage power module.

General
Modelo	P36-12V-240
Tipo de producto	Wide-Voltage Power Module
Entrada de energía
Rango de voltaje de entrada	9-36 VCC
Typical Input Voltage	19V / 24V / 36V
Protección	Protección de polaridad inversa
DC_IN1	1 × 4-pin 9–36V DC input Phoenix terminal, 5.08 paso mm
DC_IN2	2 × 6-pin 9–36V DC input pin header, 2.54 paso mm
Power Output
Voltaje de salida	12En DC
Corriente de salida máxima	20A
Potencia máxima de salida	240W.
12V / 10A Output	2 × 2-pin standard ATX power output connector
12V / 20A Output	2 × 3-pin standard ATX power output connector
Interfaces and Control
SYSFAN1	1 × 4-pin system fan header, 1.25 paso mm
PWR_SW1	1 × 4-pin output control switch header, 2.00 paso mm
Mechanical
Dimensiones	148 milímetros × 35 milímetros × 35.5 milímetros
Montaje	Dos orificios de montaje diagonales o montaje en pared del chasis con accesorios de montaje
