The NUC19D is a 120 × 120 mm Embedded Board designed for embedded and industrial applications. Powered by the Intel® Bay Trail platform, it provides reliable computing performance for industrial control, medical instruments, and embedded system projects.
Designed with up to 4 serial ports including optional RS485 support, VGA and HDMI or dual HDMI display outputs, and SATA 2.0 and mSATA storage, this product supports flexible system integration for mini PCs, financial equipment, cloud terminals, and industrial control applications.
With 120 × 120 mm dimensions, industrial-grade reliability, and flexible configuration options, the NUC19D provides a dependable platform for OEM and ODM projects.

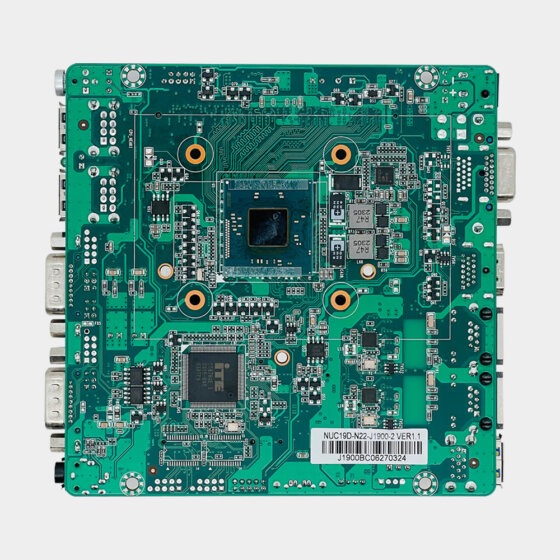

Bottom view of the CoreIPC NUC19D 120 × 120 mm Intel® Bay Trail embedded board.

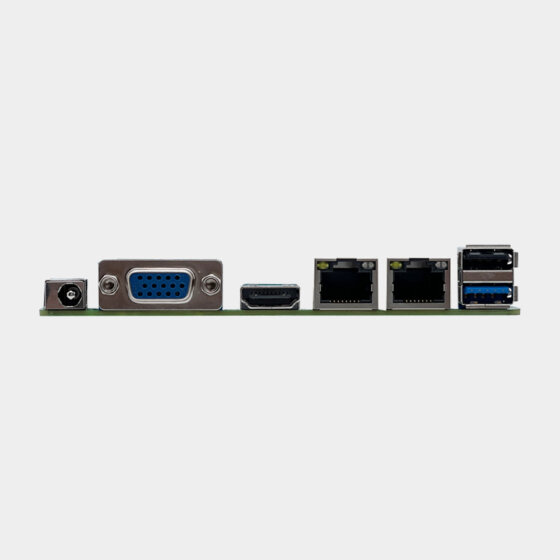

Rear I/O view of the CoreIPC NUC19D 120 × 120 mm Intel® Bay Trail embedded board with VGA configuration.

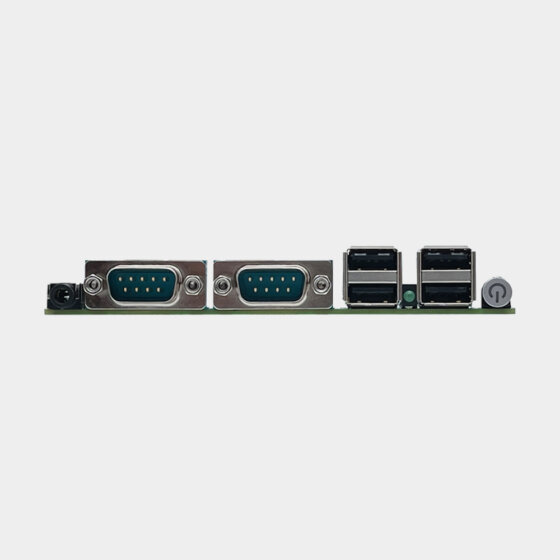

Rear I/O view of the CoreIPC NUC19D 120 × 120 mm Intel® Bay Trail embedded board with dual COM ports.
Características clave
- Intel® Bay Trail platform with integrated Intel® Celeron® J1900 processor
- 120 × 120 mm form factor
- 2 × Realtek RTL8111H Gigabit Ethernet ports
- 1 × VGA and 1 ×HDMI, or 2 × HDMI display outputs
- 1 × Mini PCIe slot supporting half-size and full-size Wi-Fi or 4G modules
- 1 × SATA 2.0 connector and 1 × full-size mSATA slot
- ventanas 7, ventanas 10, and Linux support
Q1. What processor platform does the NUC19D support?
The NUC19D integrates an Intel® Celeron® J1900 2.0 GHz quad-core processor and is compatible with Intel® Bay Trail-I, Bay Trail-M, and Bay Trail-D series processors.
Q2. What memory does the NUC19D support?
The motherboard provides 1 × 204-pin SO-DIMM slot supporting single-channel DDR3L 1600/1333 MHz memory at 1.35 V, with a maximum capacity of 8 ES.
Q3. What display interfaces are available?
The NUC19D supports 1 × VGA and 1 ×HDMI 1.2 port, or an optional configuration with 2 ×HDMI 1.2 ports. VGA and HDMI support synchronous or asynchronous display.
Q4. What storage interfaces does the motherboard provide?
The motherboard provides 1 × 7-pin SATA 2.0 connector and 1 × full-size mSATA slot for storage devices.
Q5. Does the NUC19D support Mini PCIe expansion?
Sí. It provides 1 × Mini PCIe slot supporting half-size and full-size Wi-Fi or 4G modules.
Q6. What LAN and USB interfaces are supported?
The motherboard provides 2 × Realtek RTL8111H Gigabit Ethernet ports with Wake-on-LAN and PXE boot support. It also supports 1 × USB 3.0 port and 5 × USB 2.0 ports.
Q7. Does the NUC19D support RS485 communication?
Sí. Two DB9 RS232 serial ports are provided by default, and COM1 and COM2 can be configured for RS485 communication through jumper settings. Up to four serial ports are optional.
Q8. Which operating systems are supported?
The NUC19D supports Windows 7, ventanas 10, and Linux.
CoreIPC provides reliable industrial computing platforms with long-term product availability and flexible customization services for embedded and industrial applications.
Why Choose CoreIPC
- Compact 120 × 120 mm platform
- Dual Gigabit Ethernet connectivity
- RS232 and RS485 communication
- VGA and HDMI display support
- Mini PCIe and mSATA expansion
- -20°C to 60°C operation
