EPIC37P VER1.1 3.5-inch Industrial Motherboard Intel® Sandy Bridge-U/Ivy Bridge-U Platform | CoreIPC

المعالج: Intel® Core™ i3-3217U / i5-3317U / i5-3337U, compatible with Intel® Celeron, Pentium and Core™ i3/i5/i7 Sandy Bridge-U / Ivy Bridge-U processors

Platform: Intel® Sandy Bridge-U / Ivy Bridge-U Platform

شرائح: Intel® HM76 / HM77

Form Factor: 3.5-inch SBC

ذاكرة: 1 x SO-DIMM, single-channel 1600/1333MHz DDR3, up to 8GB

Graphics: Integrated Intel® HD Graphics 4000

Display Interface: VGA, اتش دي ام اي, LVDS

Display Support: VGA, اتش دي ام اي, LVDS synchronous/asynchronous dual display

تخزين: 1 x SATA2.0, 1 x mSATA3.0 slot

توسع: 1 x Mini-PCIe slot supporting WIFI/4G modules

لان: 2 x Realtek RTL8111H Gigabit LAN

USB: 2 x USB3.0, 6 x USB2.0

منافذ كوم: 6 x COM ports

RS485: 2 x RS485 supported via COM1 and COM2

مدخلات الطاقة: DC 12V

درجة حرارة التشغيل: -10℃ to 60℃

نظام التشغيل: Windows XP, ويندوز 7, ويندوز 10, لينكس

أبعاد: 146mm x 102mm

إرسال الاستفسار الدردشة الحية

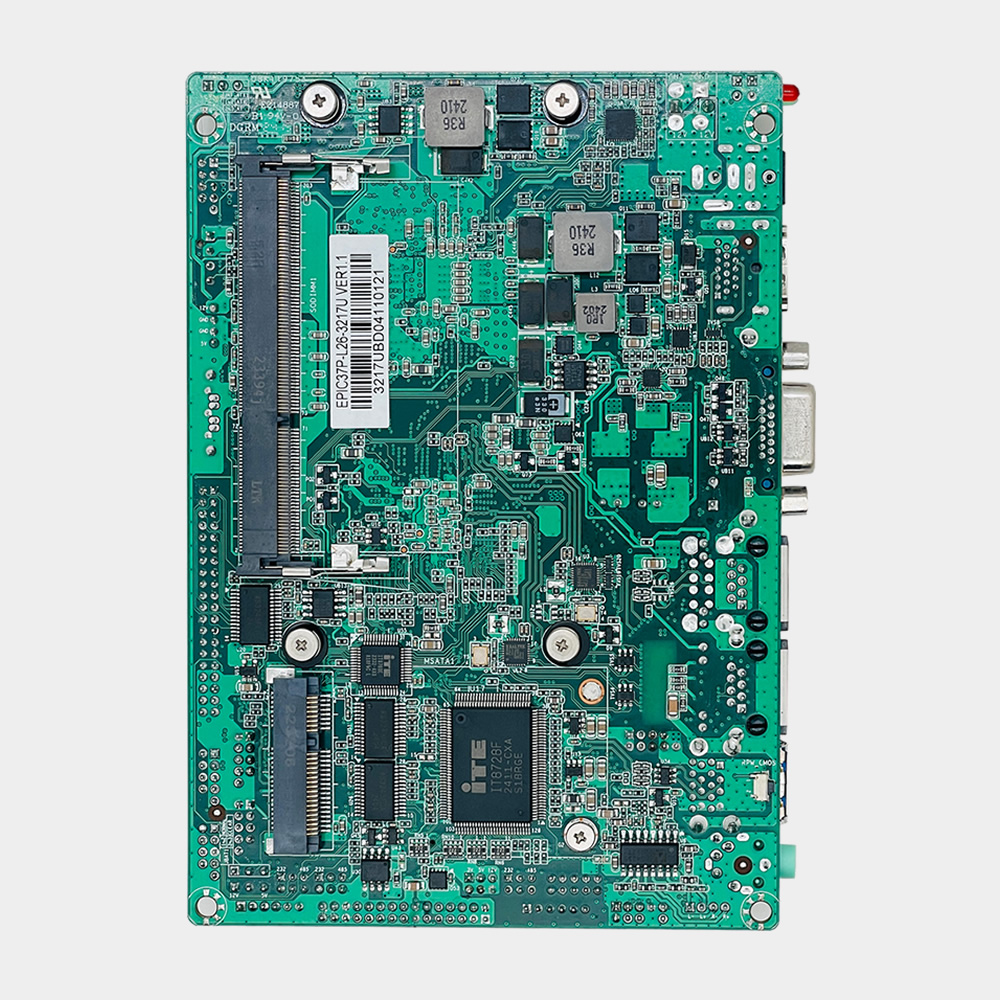

EPIC37P-V1.1-BOT
The EPIC37P VER1.1 is a 3.5-inch SBC Industrial Motherboard designed for embedded and industrial applications. Powered by Intel® Sandy Bridge-U / Ivy Bridge-U Platform, it provides reliable computing performance for industrial control, automation, and embedded system projects.

Designed with Dual Gigabit LAN, 6 COM ports and USB connectivity, VGA, HDMI and LVDS display support, and SATA2.0 plus mSATA storage support, this product supports flexible system integration for commercial display, رؤية الآلة, medical instruments, industrial control, financial equipment, cloud terminal and industrial applications.

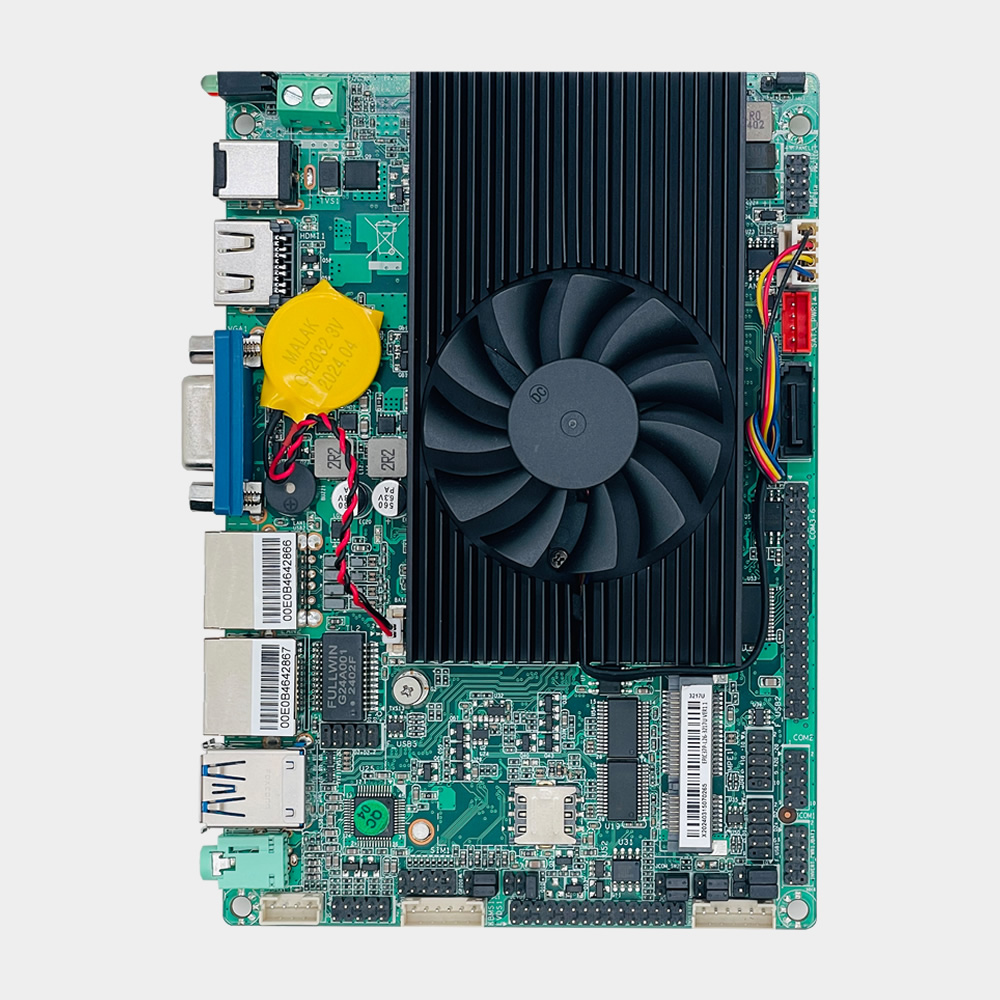

With 146mm x 102mm compact dimensions, industrial-grade reliability, وخيارات التكوين المرنة, the EPIC37P VER1.1 provides a dependable platform for OEM and ODM projects. EPIC37P-V1.1-TOP

الميزات الرئيسية

Intel® Sandy Bridge-U / Ivy Bridge-U Platform
3.5-inch SBC
Dual Gigabit LAN
VGA, HDMI and LVDS display support
Mini-PCIe expansion with WIFI/4G module support
SATA2.0 and mSATA storage support
Windows XP, ويندوز 7, ويندوز 10 and Linux support

نموذج المنتج	EPIC37P VER1.1
Form Factor	3.5-inch SBC
المعالج	Intel® Core™ i3-3217U / i5-3317U / i5-3337U, compatible with Intel® Celeron, Pentium and Core™ i3/i5/i7 Sandy Bridge-U / Ivy Bridge-U processors
CPU Platform	Intel® Sandy Bridge-U / Ivy Bridge-U Platform
شرائح	Intel® HM76 / HM77
Graphics	Integrated Intel® HD Graphics 4000
Memory Type	DDR3 SO-DIMM
Memory Slot	1 x SO-DIMM
Memory Capacity	Up to 8GB
Memory Frequency	1600/1333MHz
Display Interface	VGA, اتش دي ام اي, LVDS
Display Support	VGA, اتش دي ام اي, LVDS synchronous/asynchronous dual display
LAN Controller	2 x Realtek RTL8111H Gigabit LAN
Network Features	Wake-on-LAN, PXE
تخزين	1 x SATA2.0, 1 x mSATA3.0 slot
توسع	1 x Mini-PCIe slot, 1 x mSATA3.0 slot
USB	2 x USB3.0, 6 x USB2.0
المنافذ التسلسلية	6 x COM ports, COM1/COM2 support RS232/RS485
LPT	لا يوجد
PS/2	1 x PS/2
Audio Codec	ALC897 7.1-channel HD audio controller
Audio Interface	MIC, Line-out
Amplifier	2Ω 5W dual-channel amplifier
جيبيو	4-bit GPIO
Watchdog Timer	256-level hardware watchdog timer, 0~255 seconds
تصميم التبريد	لا يوجد
مدخلات الطاقة	DC 12V
Power Mode	لا يوجد
درجة حرارة التشغيل	-10℃ to 60℃
درجة حرارة التخزين	-20℃ to 70℃
رطوبة	5%–95% relative humidity, غير التكثيف
نظام التشغيل	Windows XP, ويندوز 7, ويندوز 10, لينكس
BIOS	32Mb Flash ROM
أبعاد	146mm x 102mm

طلب المعلومات

The EPIC37P series is available with multiple Intel® processor options, providing a flexible platform for industrial automation, embedded control, HMI systems, industrial displays and long-life embedded applications.

Available Ordering Configurations

No.	نموذج	CPU	Cores	Frequency	ذاكرة	اتش دي ام اي	VGA	LVDS	لان	USB	PS/2	COM/485	Power
1	EPIC37P-L26-3217U VER1.1	Intel® Core™ i3-3217U	2	1.8 GHz	DDR3	1	1	1	2	8	1	6 / 2	12V
2	EPIC37P-L26-3317U VER1.1	Intel® Core™ i5-3317U	2	1.7 GHz	DDR3	1	1	1	2	8	1	6 / 2	12V
3	EPIC37P-L26-3517U VER1.1	Intel® Core™ i7-3517U	2	1.9 GHz	DDR3	1	1	1	2	8	1	6 / 2	12V

Customization Options

Memory and storage capacity configuration
BIOS customization
Logo customization
Packaging customization
I/O interface customization
Display interface customization
OEM and ODM project support

Quotation Information

For quotation requests, please provide the required model version, processor configuration, memory capacity, سعة التخزين, operating system, estimated order quantity and any customization requirements. Our engineering team will recommend the most suitable solution based on your project needs.

EPIC37P User Manual Issue 1.1

تحميل →

س1. What processor platform does the EPIC37P VER1.1 support?

The EPIC37P VER1.1 supports Intel® Sandy Bridge-U and Ivy Bridge-U processor platforms, including Intel® Celeron, Pentium and Core™ i3/i5/i7 series processors.

Q2. What memory specifications are supported?

The motherboard provides 1 x SO-DIMM slot supporting single-channel DDR3 memory at 1600/1333MHz with a maximum capacity of 8GB.

س3. What display interfaces are available on the board?

The EPIC37P VER1.1 supports VGA, HDMI and LVDS display interfaces. The board also supports VGA, HDMI and LVDS synchronous/asynchronous dual display.

س 4. What storage interfaces does the motherboard provide?

The board includes 1 x SATA2.0 interface and 1 x mSATA3.0 slot for storage expansion.

س5. Does the EPIC37P VER1.1 support Mini-PCIe expansion?

نعم. The motherboard provides 1 x Mini-PCIe slot supporting WIFI and 4G modules.

س6. What LAN features are supported?

The motherboard supports up to 2 x Realtek RTL8111H Gigabit LAN controllers with Wake-on-LAN and PXE functions.

س7. Does the motherboard support RS485 communication?

نعم. COM1 and COM2 support RS232 and RS485 communication through jumper configuration. The board provides a total of 6 COM ports.

Q8. Which operating systems are supported?

The EPIC37P VER1.1 supports Windows XP, ويندوز 7, ويندوز 10 وأنظمة التشغيل لينكس.
