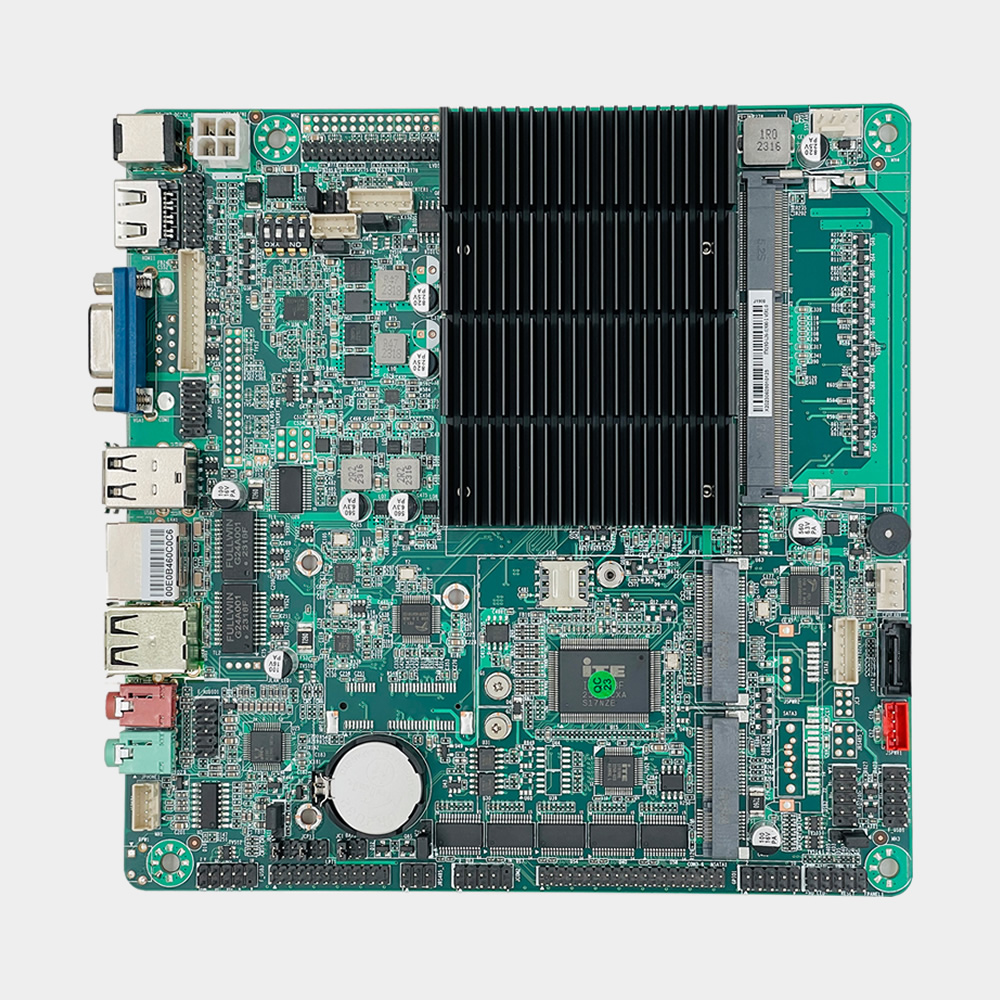

The ITX19D VER1.0 is a Mini-ITX Industrial Motherboard designed for embedded and industrial applications. Powered by Intel® Bay Trail-I/M/D Platform, it provides reliable computing performance for industrial control, automation, and embedded system projects.
Designed with multiple USB, كوم, and dual LAN connectivity, VGA, اتش دي ام اي, LVDS or eDP display support, and SATA2.0 and mSATA storage interfaces, this product supports flexible system integration for commercial display, communication control, medical instruments, industrial control, financial equipment, and cloud terminal applications.
With a 170mm x 170mm Mini-ITX form factor, industrial-grade reliability, وخيارات التكوين المرنة, the ITX19D VER1.0 provides a dependable platform for OEM and ODM projects.
الميزات الرئيسية
- Intel® Bay Trail-I/M/D Platform
- ميني آي تي إكس
- Dual Gigabit LAN
- VGA, اتش دي ام اي, LVDS and optional eDP display support
- Mini-PCIe expansion
- SATA2.0 and mSATA storage support
- ويندوز 7, ويندوز 10 and Linux
طلب المعلومات
The ITX19D series is available with Intel® Celeron® J1900 and J1800 processor options, providing a reliable and cost-effective platform for industrial automation, embedded control, industrial displays, HMI systems and self-service terminal applications.
Available Ordering Configurations
| No. |
نموذج |
CPU |
Cores |
Frequency |
ذاكرة |
اتش دي ام اي |
VGA |
LVDS/eDP |
لان |
USB |
PS/2 |
LPT |
COM/485 |
Power |
| 1 |
ITX19D-L12 VER1.0 |
Intel® Celeron® J1900 |
4 |
2.0 GHz |
DDR3L |
1 |
1 |
1 |
1 |
8 |
1 |
1 |
2 / 1 |
12V |
| 2 |
ITX19D-L12 VER1.0 |
Intel® Celeron® J1800 |
2 |
2.41 GHz |
DDR3L |
1 |
1 |
1 |
1 |
8 |
1 |
1 |
2 / 1 |
12V |
| 3 |
ITX19D-L26 VER1.0 |
Intel® Celeron® J1900 |
4 |
2.0 GHz |
DDR3L |
1 |
1 |
1 |
2 |
8 |
1 |
1 |
6 / 2 |
12V |
Note: LVDS and eDP are alternative display interface options. Only one display interface can be selected for each configuration.
Customization Options
- Memory and storage capacity configuration
- BIOS customization
- Logo customization
- Packaging customization
- I/O interface customization
- Display interface customization (LVDS or eDP)
- Serial port customization
- OEM and ODM project support
Quotation Information
For quotation requests, please provide the required processor version, memory capacity, سعة التخزين, operating system, estimated order quantity and any customization requirements. Our engineering team will recommend the most suitable configuration based on your project needs.
س1. What processor platform does the ITX19D VER1.0 support?
The ITX19D VER1.0 supports the Intel® Bay Trail-I/M/D platform, including Intel® Celeron J1900 and J1800 processors.
Q2. What memory specifications are supported?
The motherboard provides 1 x SO-DIMM slot supporting single-channel DDR3L 1600/1333MHz memory with a maximum capacity of 8GB.
س3. What display interfaces are available on the motherboard?
The board supports VGA, اتش دي ام اي, LVDS, and optional eDP display interfaces. It supports VGA, اتش دي ام اي, LVDS, or eDP synchronous/asynchronous display.
س 4. What storage interfaces are available?
The ITX19D VER1.0 supports SATA2.0 storage interfaces, a 2.5-inch SATA2.0 HDD interface, and one mSATA slot.
س5. Does the motherboard support Mini-PCIe expansion?
نعم. The board supports up to 2 Mini-PCIe slots for WIFI, 4G, and other expansion modules.
س6. What network features are supported?
The motherboard supports up to 2 Gigabit LAN ports based on Realtek RTL8111H controllers with Wake-on-LAN and PXE support.
س7. Does the board support RS485 communication?
نعم. The motherboard provides 6 COM ports and supports up to 4 RS485 interfaces through configurable serial ports.
Q8. Which operating systems are supported?
The ITX19D VER1.0 supports Windows 7, ويندوز 10, وأنظمة التشغيل لينكس.
