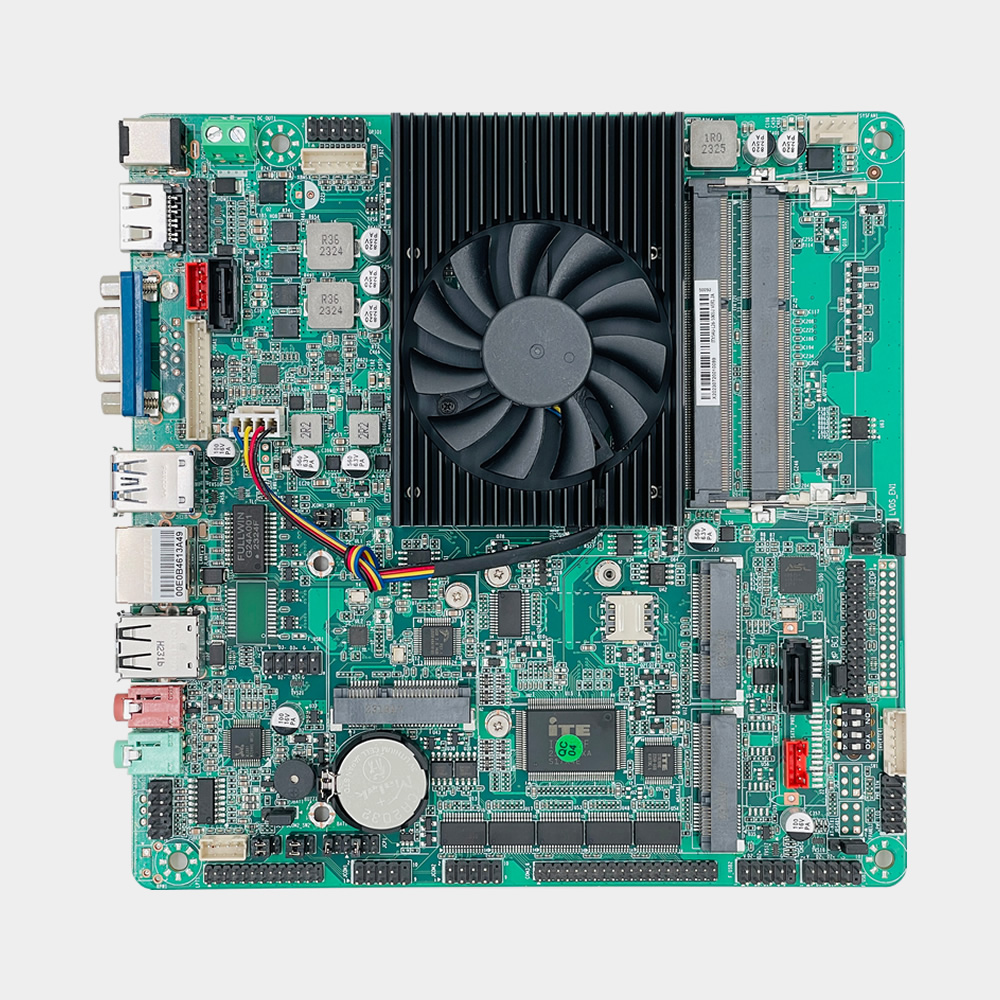

The ITX54U VER 1.2A is a Mini-ITX Industrial Motherboard designed for embedded and industrial applications. Powered by Intel® Haswell/Broadwell-U Platform, it provides reliable computing performance for industrial control, automation, and embedded system projects.
Designed with up to 10 منافذ يو اس بي, 6 COM ports with optional RS485 support, dual Gigabit LAN, VGA, اتش دي ام اي, LVDS or eDP display support, and SATA3.0 plus mSATA storage interfaces, this product supports flexible system integration for commercial display, رؤية الآلة, medical instruments, industrial control, financial equipment, cloud terminal, and industrial applications.
With a 170mm x 170mm Mini-ITX form factor, industrial-grade reliability, وخيارات التكوين المرنة, the ITX54U VER 1.2A provides a dependable platform for OEM and ODM projects.
الميزات الرئيسية
- Intel® Haswell/Broadwell-U Platform
- ميني آي تي إكس
- Dual Gigabit LAN
- VGA, اتش دي ام اي, LVDS or eDP display support
- 2 Mini-PCIe slots
- SATA3.0 and mSATA storage support
- ويندوز 7, ويندوز 10, لينكس
طلب المعلومات
The ITX54U series is available with multiple Intel® 4th and 5th Generation Core™ processor options, providing a reliable platform for industrial automation, embedded control, industrial displays, HMI systems and self-service terminal applications.
Available Ordering Configurations
| No. |
نموذج |
CPU |
Cores |
Frequency |
ذاكرة |
اتش دي ام اي |
VGA |
LVDS/eDP |
لان |
USB |
PS/2 |
LPT |
COM/485 |
Power |
| 1 |
ITX54U-L12-4030U VER1.2A |
Intel® Core™ i3-4030U |
2 |
1.9 GHz |
DDR3L |
1 |
1 |
1 |
1 |
10 |
1 |
1 |
2 / 1 |
12V |
| 2 |
ITX54U-L12-4300U VER1.2A |
Intel® Core™ i5-4300U |
2 |
1.9 GHz |
DDR3L |
1 |
1 |
1 |
1 |
10 |
1 |
1 |
2 / 1 |
12V |
| 3 |
ITX54U-L26-4300U VER1.2A |
Intel® Core™ i5-4300U |
2 |
1.9 GHz |
DDR3L |
1 |
1 |
1 |
2 |
8 |
1 |
1 |
6 / 2 |
12V |
| 4 |
ITX54U-L26-5300U VER1.2A |
Intel® Core™ i5-5300U |
2 |
2.3 GHz |
DDR3L |
1 |
1 |
1 |
2 |
8 |
1 |
1 |
6 / 2 |
12V |
Note: LVDS and eDP are alternative display interface options. Only one display interface can be selected for each configuration.
Customization Options
- Memory and storage capacity configuration
- BIOS customization
- Logo customization
- Packaging customization
- I/O interface customization
- Display interface customization (LVDS or eDP)
- Serial port customization
- OEM and ODM project support
Quotation Information
For quotation requests, please provide the required processor version, memory capacity, سعة التخزين, operating system, estimated order quantity and any customization requirements. Our engineering team will recommend the most suitable configuration based on your project needs.
س1. What processor platform does the ITX54U VER 1.2A support?
The ITX54U VER 1.2A supports Intel® Haswell-U or Broadwell-U series processors, including Intel Celeron, Pentium, Core i3, Core i5, and Core i7 CPU options.
Q2. What is the maximum memory capacity?
This motherboard provides 2 SO-DIMM memory slots and supports dual-channel DDR3L 1600/1333MHz memory up to 16GB.
س3. What display interfaces are available?
The board supports 1 VGA, 1 اتش دي ام اي, و 1 LVDS or eDP interface. LVDS and eDP are alternative options.
س 4. What storage interfaces are available?
The motherboard provides 1 2.5-inch SATA3.0 interface, 1 SATA3.0 interface, و 1 mSATA3.0 slot.
س5. Does it support Mini-PCIe expansion?
نعم. The board supports 1 Mini-PCIe slot for WiFi/4G modules and 1 optional Mini-PCIe slot for WiFi modules.
س6. What LAN configuration does the board support?
The board supports 2 Realtek RTL8111H Gigabit LAN ports, with optional support for 1 LAN port. It also supports Wake-on-LAN and PXE.
س7. Does it support RS485 communication?
نعم. COM1 and COM2 support RS485, while COM3 and COM4 can optionally support RS485. The board provides up to 6 COM ports.
Q8. Which operating systems are supported?
The ITX54U VER 1.2A supports Windows 7, ويندوز 10, and Linux.
