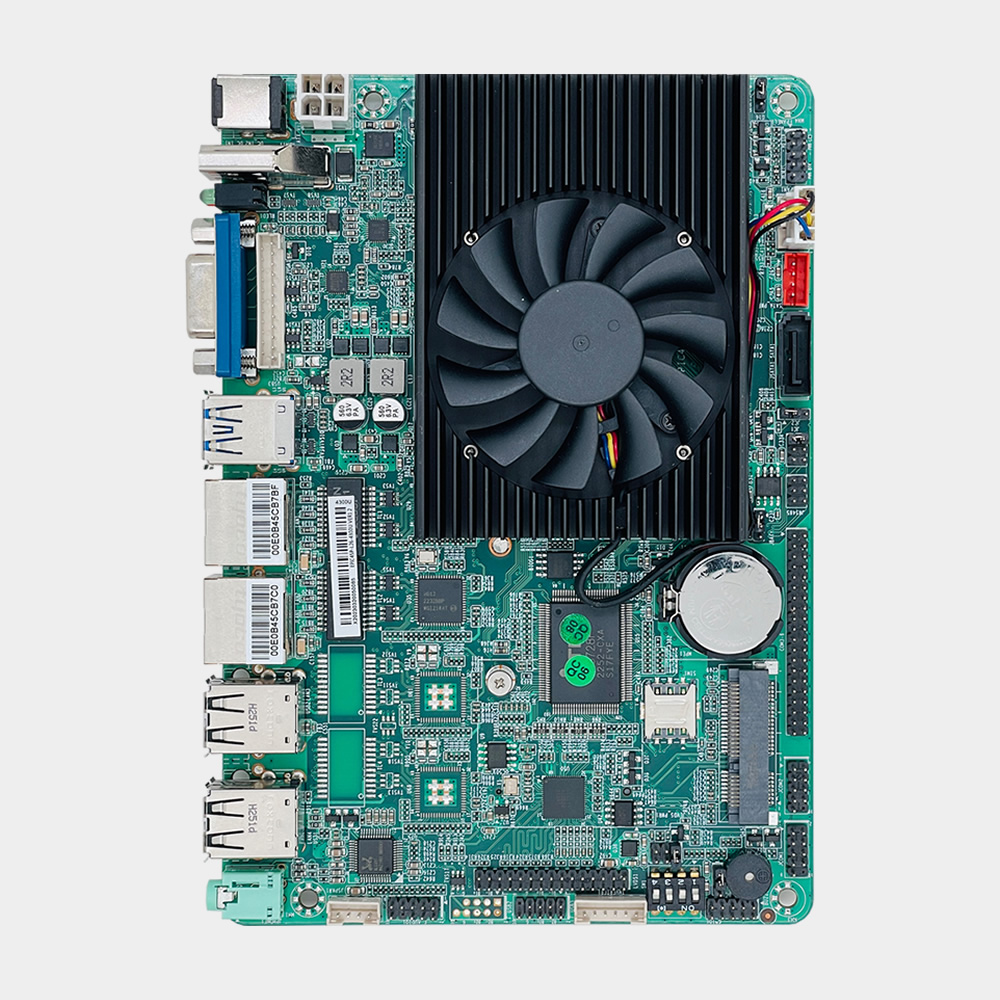

The EPIC45P VER1.2 is an EPIC Embedded Board designed for embedded and industrial applications. Powered by Intel® Haswell/Broadwell-U Platform, it provides reliable computing performance for industrial control, automation, and embedded system projects.
Designed with 4* Intel I211 Gigabit LAN, 6* COM with optional RS485 support, and USB3.0/USB2.0 connectivity, VGA, اتش دي ام اي, LVDS or eDP display support, and SATA3.0 plus mSATA storage interfaces, this product supports flexible system integration for industrial applications.
With 165mm x 115mm compact EPIC form factor, industrial-grade reliability, وخيارات التكوين المرنة, the EPIC45P VER1.2 provides a dependable platform for OEM and ODM projects.
الميزات الرئيسية
- Intel® Haswell/Broadwell-U Platform
- EPIC Form Factor
- 4* Intel I211 Gigabit LAN
- VGA, اتش دي ام اي, LVDS or eDP Display Support
- Mini-PCIe Expansion
- SATA3.0 and mSATA Storage
- Windows 7/Windows 10/Linux
طلب المعلومات
The EPIC45P series is available with multiple LAN and I/O configurations based on Intel® Core™ processors, providing a flexible platform for industrial automation, embedded control, industrial displays, HMI systems and edge computing applications.
Available Ordering Configurations
| No. |
نموذج |
CPU |
Cores |
Frequency |
ذاكرة |
اتش دي ام اي |
VGA |
LVDS |
eDP |
لان |
USB |
COM/485 |
Power |
| 1 |
EPIC45P-L26-4300U VER1.2 |
Intel® Core™ i5-4300U |
2 |
1.9 GHz |
DDR3L |
1 |
1 |
1 |
— |
2 |
8 |
6 / 2 |
12V |
| 2 |
EPIC45P-L42-4300U VER1.2 |
Intel® Core™ i5-4300U |
2 |
1.9 GHz |
DDR3L |
1 |
1 |
1 |
— |
4 |
6 |
2 / 1 |
12V |
Customization Options
- Memory and storage capacity configuration
- BIOS customization
- Logo customization
- Packaging customization
- I/O interface customization
- Display interface customization
- OEM and ODM project support
Quotation Information
For quotation requests, please provide the required model version, processor configuration, memory capacity, سعة التخزين, operating system, estimated order quantity and any customization requirements. Our engineering team will recommend the most suitable solution based on your project needs.
س1. What processor platform does the EPIC45P VER1.2 support?
The EPIC45P VER1.2 supports Intel® Haswell/Broadwell-U platform processors, including Intel® Celeron, Pentium, and Core™ i3/i5/i7 series CPUs.
Q2. What memory specifications are supported?
The board provides 1* SO-DIMM slot supporting single-channel DDR3L 1600/1333MHz memory with a maximum capacity of 8GB.
س3. What display interfaces are available on the board?
The motherboard supports VGA, اتش دي ام اي, LVDS, or eDP display interfaces. It supports synchronous and asynchronous display modes.
س 4. What storage interfaces does the EPIC45P VER1.2 provide?
The board provides 1* SATA3.0 interface and 1* mSATA3.0 slot for storage expansion.
س5. Does the motherboard support Mini-PCIe expansion?
نعم. The EPIC45P VER1.2 includes 1* Mini-PCIe slot supporting WiFi or 4G modules, with SIM interface support.
س6. What network features are supported?
The motherboard supports up to 4* Intel I211 Gigabit LAN ports and supports Wake-on-LAN and PXE functions.
س7. Does the board support RS485 communication?
نعم. COM2 supports RS485/RS422, and COM3 supports RS485 communication through jumper configuration.
Q8. Which operating systems are supported?
The EPIC45P VER1.2 supports Windows 7, ويندوز 10, وأنظمة التشغيل لينكس.
CoreIPC provides reliable industrial computing platforms with long-term product availability and flexible customization services for embedded and industrial applications.
لماذا تختار CoreIPC
- Haswell/Broadwell-U Embedded Platform
- Rich Industrial I/O
- VGA HDMI LVDS/eDP Display
- Mini-PCIe and mSATA Expansion
- RS485 Serial Communication
- DC 12V AT/ATX Power
حلول الحوسبة الصناعية CoreIPC
