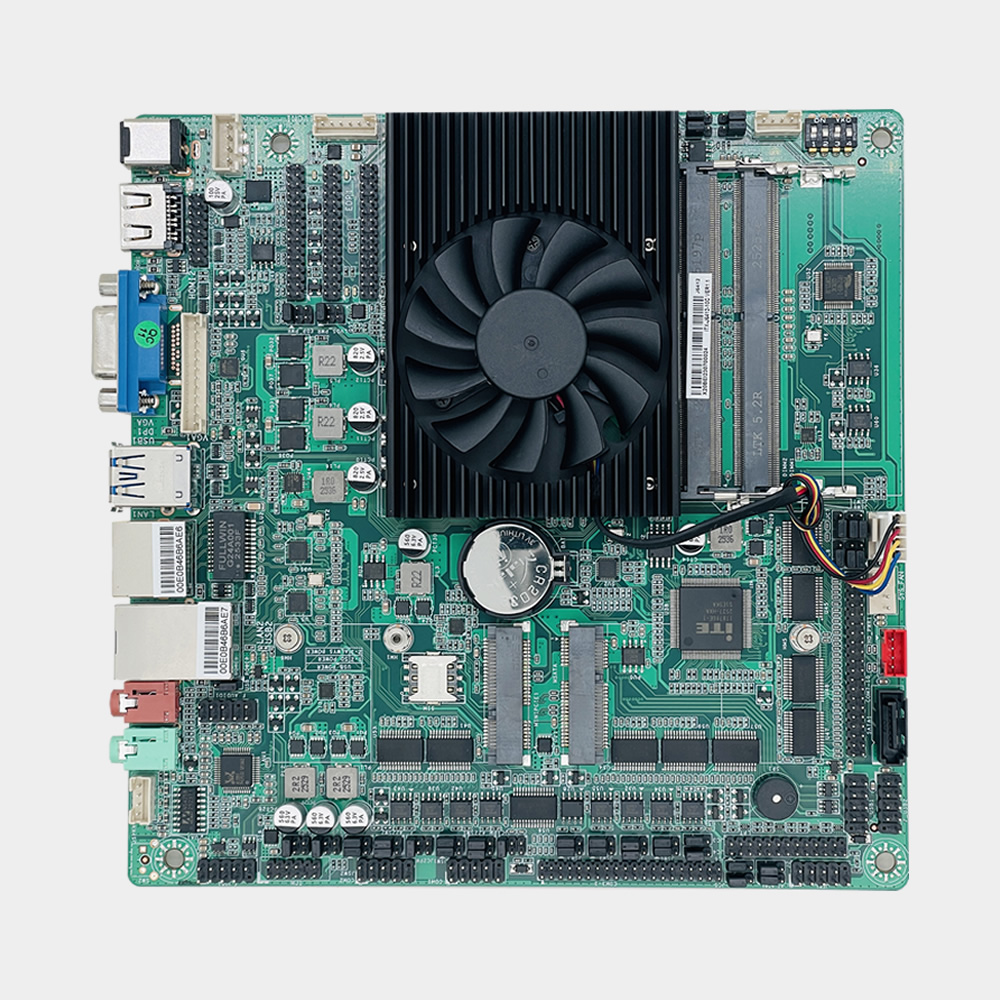

The ITX-J6412-10C VER1.1 is a Mini-ITX Industrial Motherboard designed for embedded and industrial applications. Powered by Intel® Elkhart Lake Platform, it provides reliable computing performance for industrial control, automation, and embedded system projects.
Designed with 10 COM ports with RS485 support, VGA, اتش دي ام اي, LVDS or eDP display support, and SATA3.0 and Msata storage interfaces, this product supports flexible system integration for commercial display, communication control, medical equipment, industrial control, financial equipment, cloud terminal, and industrial applications.
With 170mm x 170mm Mini-ITX form factor, industrial-grade reliability, وخيارات التكوين المرنة, the ITX-J6412-10C VER1.1 provides a dependable platform for OEM and ODM projects.
الميزات الرئيسية
- Intel® Elkhart Lake Platform
- ميني آي تي إكس
- 2* Realtek Gigabit LAN
- VGA, اتش دي ام اي, LVDS or eDP display support
- 1* Mini-PCIe slot for WIFI/4G module
- SATA3.0 and Msata storage support
- Windows 10/Windows 11/Linux
طلب المعلومات
The ITX-J6412-10C VER1.1 is powered by the Intel® Processor J6412 and is designed for industrial automation, machine control, industrial gateways, communication systems and embedded applications requiring extensive serial connectivity.
Available Ordering Configurations
| No. |
نموذج |
CPU |
Cores |
Frequency |
ذاكرة |
اتش دي ام اي |
VGA |
LVDS |
eDP |
لان |
USB |
PS/2 |
LPT |
COM/485 |
Power |
| 1 |
ITX-J6412-10C VER1.1 |
Intel® Processor J6412 |
4 |
2.0 GHz |
DDR4 |
1 |
1 |
1 |
— |
2 |
8 |
— |
1 |
10 / 8 |
12V |
| 2 |
ITX-J6412-10C VER1.1 |
Intel® Processor J6412 |
4 |
2.0 GHz |
DDR4 |
1 |
1 |
1 |
— |
1 |
8 |
— |
1 |
10 / 8 |
12V |
Customization Options
- Memory and storage capacity configuration
- BIOS customization
- Logo customization
- Packaging customization
- I/O interface customization
- Serial port customization
- OEM and ODM project support
Quotation Information
For quotation requests, please provide the required model version, memory capacity, سعة التخزين, operating system, estimated order quantity and any customization requirements. Our engineering team will recommend the most suitable solution based on your project needs.
س1. What processor platform does the ITX-J6412-10C VER1.1 support?
The ITX-J6412-10C VER1.1 is based on the Intel® Elkhart Lake platform and integrates an Intel® Celeron J6412 quad-core processor with 2.0GHz frequency.
Q2. What memory specifications are supported?
The motherboard provides 2* SODIMM slots and supports dual-channel 3200MHz DDR4 memory with a maximum capacity of 32GB.
س3. What display interfaces are available on this motherboard?
The board supports VGA or DP, اتش دي ام اي 2.0, and LVDS or eDP display interfaces. It also supports synchronous and asynchronous triple display configurations.
س 4. What storage interfaces are available?
The motherboard provides 1* SATA3.0 interface and 1* Msata slot with data transfer rates up to 6Gbps.
س5. Does the board support Mini-PCIe expansion?
نعم. The board includes 1* Mini-PCIe slot for WIFI or 4G module expansion.
س6. What LAN features are supported?
The motherboard supports up to 2* Realtek RTL8111H Gigabit LAN controllers with Wake-on-LAN and PXE boot support.
س7. Does the motherboard support RS485 communication?
نعم. The board supports 10 COM ports, including RS485 support on COM1 to COM8. COM1 and COM2 also support optional RS422 configuration.
Q8. Which operating systems are supported?
The motherboard supports Windows 10, ويندوز 11, وأنظمة التشغيل لينكس.
