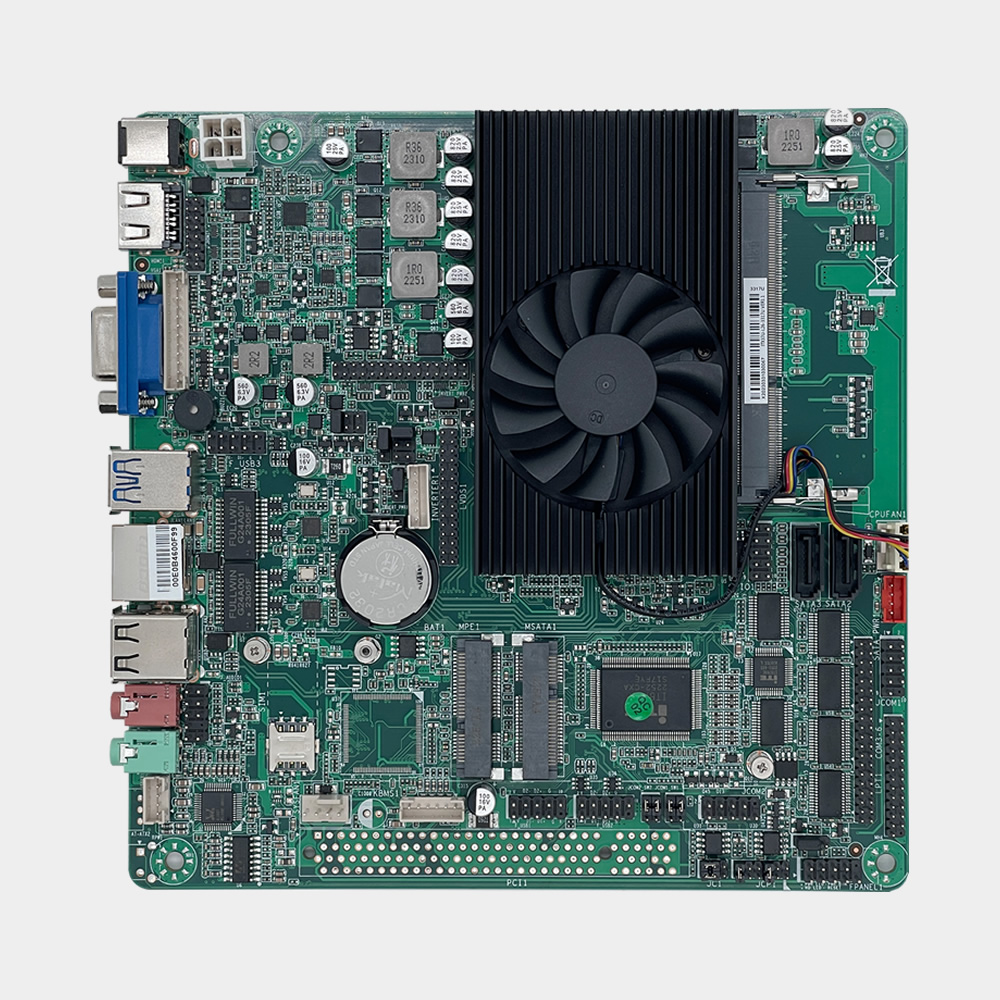

The ITX37U VER1.1 is a Mini-ITX Industrial Motherboard designed for embedded and industrial applications. Powered by Intel® Sandy Bridge-U / Ivy Bridge-U Platform, it provides reliable computing performance for industrial control, automation, and embedded system projects.
Designed with Dual LAN, VGA, اتش دي ام اي, LVDS and eDP display interfaces, and SATA2.0 and mSATA storage support, this product supports flexible system integration for commercial display, رؤية الآلة, medical instruments, industrial control, financial equipment, cloud terminal, and industrial applications.
With 170mm x 170mm Mini-ITX form factor, industrial-grade reliability, وخيارات التكوين المرنة, the ITX37U VER1.1 provides a dependable platform for OEM and ODM projects.
الميزات الرئيسية
- Intel® Sandy Bridge-U / Ivy Bridge-U Platform
- ميني آي تي إكس
- Dual Gigabit LAN
- VGA, اتش دي ام اي, LVDS and eDP Display Support
- Mini-PCIe and PCI Expansion
- SATA2.0 and mSATA Storage Support
- Windows XP, ويندوز 7, ويندوز 10 and Linux
طلب المعلومات
The ITX37U series is available with Intel® 3rd Generation Core™ processor options, providing a reliable platform for industrial automation, embedded control, industrial displays, HMI systems and self-service terminal applications.
Available Ordering Configurations
| No. |
نموذج |
CPU |
Cores |
Frequency |
ذاكرة |
اتش دي ام اي |
VGA |
LVDS/eDP |
لان |
USB |
PS/2 |
LPT |
COM/485 |
Power |
| 1 |
ITX37U-L12-3217U VER1.1 |
Intel® Core™ i3-3217U |
2 |
1.8 GHz |
DDR3 |
1 |
1 |
1 |
1 |
10 |
1 |
1 |
2 / 1 |
12V |
| 2 |
ITX37U-L12-3317U VER1.1 |
Intel® Core™ i5-3317U |
2 |
1.7 GHz |
DDR3 |
1 |
1 |
1 |
1 |
10 |
1 |
1 |
2 / 1 |
12V |
| 3 |
ITX37U-L26-3317U VER1.1 |
Intel® Core™ i5-3317U |
2 |
1.7 GHz |
DDR3 |
1 |
1 |
1 |
2 |
8 |
1 |
1 |
6 / 2 |
12V |
Note: LVDS and eDP are alternative display interface options. Only one display interface can be selected for each configuration.
Customization Options
- Memory and storage capacity configuration
- BIOS customization
- Logo customization
- Packaging customization
- I/O interface customization
- Display interface customization (LVDS or eDP)
- Serial port customization
- OEM and ODM project support
Quotation Information
For quotation requests, please provide the required processor version, memory capacity, سعة التخزين, operating system, estimated order quantity and any customization requirements. Our engineering team will recommend the most suitable configuration based on your project needs.
س1. What processor platform does the ITX37U VER1.1 support?
The ITX37U VER1.1 supports Intel® Sandy Bridge-U and Ivy Bridge-U series processors, including Intel® Celeron, Pentium, Core™ i3, Core™ i5, and Core™ i7 processors.
Q2. What memory does this motherboard support?
It provides 1 x SO-DIMM memory slot and supports single-channel 1600/1333MHz DDR3 memory, with a maximum capacity of 8GB.
س3. What display interfaces are available?
The motherboard supports VGA, اتش دي ام اي, LVDS, and eDP display interfaces. The document states that VGA, اتش دي ام اي, LVDS, and eDP support synchronous and asynchronous display.
س 4. What storage interfaces are available?
The ITX37U VER1.1 provides 2 x SATA2.0 interfaces and 1 x mSATA3.0 slot. RAID support is available when using the HM77 chipset.
س5. Does this motherboard support expansion?
نعم. It supports 1 x Mini-PCIe slot for WiFi or 4G modules and also provides an optional PCI slot.
س6. What LAN features does this motherboard provide?
The motherboard uses a Realtek RTL8111H Gigabit LAN controller and supports Wake-on-LAN and PXE. Dual LAN is available as an optional configuration.
س7. Does it support COM and RS485 communication?
نعم. The motherboard supports 6 x RS232 COM ports, with COM1 and COM2 supporting RS232/RS485. COM1 can optionally support RS422 with hardware adjustment.
Q8. Which operating systems are supported?
The ITX37U VER1.1 supports Windows XP, ويندوز 7, ويندوز 10, and Linux.
CoreIPC provides reliable industrial computing platforms with long-term product availability and flexible customization services for embedded and industrial applications.
لماذا تختار CoreIPC
- Sandy/Ivy Bridge-U platform
- Mini-ITX embedded platform
- VGA, اتش دي ام اي, LVDS, eDP display
- Mini-PCIe expansion support
- RS232 and RS485 communication
- SATA and mSATA storage
حلول الحوسبة الصناعية CoreIPC
