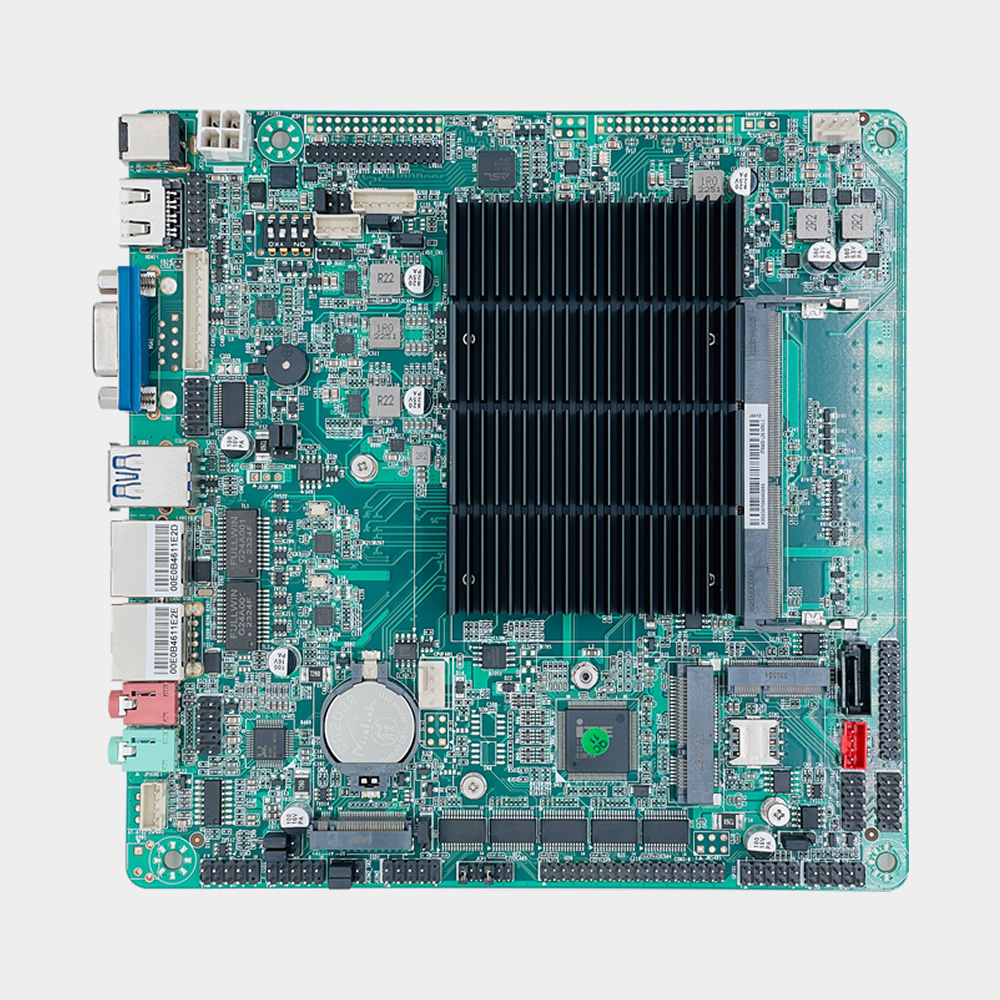

The ITX60D VER1.2 is a Mini-ITX Industrial Motherboard designed for embedded and industrial applications. Powered by Intel® Elkhart Lake Platform, it provides reliable computing performance for industrial control, automation, and embedded system projects.
Designed with dual Gigabit LAN, multiple COM interfaces, and USB connectivity, VGA, اتش دي ام اي, LVDS or eDP display support, and SATA3.0 and M.2 storage support, this product supports flexible system integration for commercial display, communication control, medical instruments, industrial control, financial equipment, cloud terminal, and industrial applications.
With a 170mm x 170mm Mini-ITX form factor, industrial-grade reliability, وخيارات التكوين المرنة, the ITX60D VER1.2 provides a dependable platform for OEM and ODM projects.
الميزات الرئيسية
- Intel® Elkhart Lake Platform
- ميني آي تي إكس
- 2* Realtek RTL8111H Gigabit LAN
- VGA, اتش دي ام اي, LVDS or eDP display support
- Mini-PCIe and M.2 Key-E expansion support
- SATA3.0 and M.2 Key-M storage support
- Windows 10/Windows 11/Linux
طلب المعلومات
The ITX60D VER1.2 series is powered by the Intel® Celeron® J6412 processor, providing a reliable and energy-efficient platform for industrial automation, embedded control, industrial displays, HMI systems and self-service terminal applications.
Available Ordering Configurations
| No. |
نموذج |
CPU |
Cores |
Frequency |
ذاكرة |
اتش دي ام اي |
VGA |
LVDS/eDP |
لان |
USB |
PS/2 |
LPT |
COM/485 |
Power |
| 1 |
ITX60D-L12 VER1.2 |
Intel® Celeron® J6412 |
4 |
2.0 GHz |
DDR4 |
1 |
1 |
1 |
1 |
9 |
— |
1 |
2 / 1 |
12V |
| 2 |
ITX60D-L16 VER1.2 |
Intel® Celeron® J6412 |
4 |
2.0 GHz |
DDR4 |
1 |
1 |
1 |
1 |
9 |
— |
1 |
6 / 2 |
12V |
| 3 |
ITX60D-L26 VER1.2 |
Intel® Celeron® J6412 |
4 |
2.0 GHz |
DDR4 |
1 |
1 |
1 |
2 |
9 |
— |
1 |
6 / 2 |
12V |
Note: LVDS and eDP are alternative display interface options. Only one display interface can be selected for each configuration.
Customization Options
- Memory and storage capacity configuration
- BIOS customization
- Logo customization
- Packaging customization
- I/O interface customization
- Display interface customization (LVDS or eDP)
- Serial port customization
- OEM and ODM project support
Quotation Information
For quotation requests, please provide the required configuration, memory capacity, سعة التخزين, operating system, estimated order quantity and any customization requirements. Our engineering team will recommend the most suitable solution based on your project needs.
س1. What processor platform does the ITX60D VER1.2 support?
The ITX60D VER1.2 supports the Intel® Elkhart Lake platform and integrates an Intel® Celeron J6412 2.0GHz quad-core processor.
Q2. What memory specifications are supported?
The motherboard provides 1* SODIMM slot supporting 3200MHz DDR4 memory with a maximum capacity of 32GB.
س3. What display interfaces are available on the motherboard?
The board supports VGA, اتش دي ام اي 2.0, LVDS, and eDP display interfaces. It supports VGA, HDMI or eDP, and LVDS or eDP synchronous/asynchronous triple display.
س 4. What storage interfaces does the ITX60D VER1.2 provide?
The motherboard provides 1* SATA3.0 interface and 1* M.2 Key-M slot supporting PCIe/SATA SSD storage devices.
س5. Does the motherboard support expansion modules?
نعم. The board supports 1* Mini-PCIe slot for WiFi/4G modules and 1* M.2 Key-E slot for WiFi and Bluetooth modules.
س6. What network features are supported?
The ITX60D VER1.2 supports 2* Realtek RTL8111H Gigabit LAN controllers with Wake-on-LAN and PXE support.
س7. Does the motherboard support RS485 communication?
نعم. The motherboard supports RS485 communication through COM1~2 by default, with optional support for COM1~4 RS485 configuration.
Q8. Which operating systems are supported?
The motherboard supports Windows 10, ويندوز 11, وأنظمة التشغيل لينكس.
