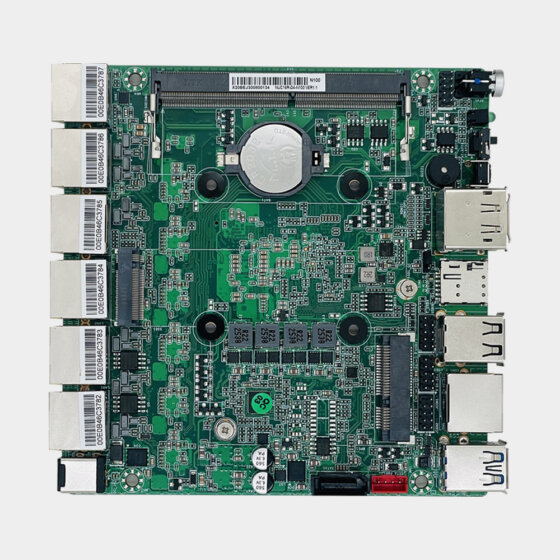

The NUC16R-D4 VER1.1 is a Nano-ITX Embedded Board designed for embedded and industrial applications. Powered by Intel® Alder Lake-N Twin Lake-N Platform, it provides reliable computing performance for industrial control, automation, and embedded system projects.
Designed with 6 x Intel® I225V or I226 2.5GbE LAN ports, dual display support via HDMI and DP, and M.2 Key-M PCIe/SATA SSD storage support, this product supports flexible system integration for soft routing, network security, industrial control, and cloud terminal applications.
With a compact 120mm x 120mm form factor, industrial-grade reliability, وخيارات التكوين المرنة, the NUC16R-D4 VER1.1 provides a dependable platform for OEM and ODM projects.
الميزات الرئيسية
- Intel® Alder Lake-N Twin Lake-N Platform
- نانو آي تي إكس
- 6 x Intel® I225V or I226 2.5GbE LAN
- 1 x HDMI, 1 x DP dual display support
- 1 x Mini-PCIe slot
- 1 x M.2 Key-M 2280/2242 PCIe/SATA SSD slot
- ويندوز 10 / ويندوز 11 / لينكس
طلب المعلومات
The NUC16R-D4 VER1.1 is available with multiple Intel® processor options, providing a high-performance and energy-efficient platform for network security, industrial automation, حوسبة الحافة, industrial gateways and communication applications.
Available Ordering Configurations
| No. |
نموذج |
CPU |
Cores |
Max Frequency |
TDP |
ذاكرة |
اتش دي ام اي |
DP |
لان |
USB |
PS/2 |
LPT |
COM/485 |
Power |
| 1 |
NUC16R-D4 VER1.1 |
Intel® Processor N95 |
4 |
Up to 3.4 GHz |
15W |
DDR4 |
1 |
1 |
6 |
7 |
— |
— |
2 / 0 |
12V |
| 2 |
NUC16R-D4 VER1.1 |
Intel® Processor N100 |
4 |
Up to 3.4 GHz |
6W |
DDR4 |
1 |
1 |
6 |
7 |
— |
— |
2 / 0 |
12V |
| 3 |
NUC16R-D4 VER1.1 |
Intel® Processor N200 |
4 |
Up to 3.7 GHz |
6W |
DDR4 |
1 |
1 |
6 |
7 |
— |
— |
2 / 0 |
12V |
| 4 |
NUC16R-D4 VER1.1 |
Intel® Core™ i3-N305 |
8 |
Up to 3.8 GHz |
15W |
DDR4 |
1 |
1 |
6 |
7 |
— |
— |
2 / 0 |
12V |
| 5 |
NUC16R-D4 VER1.1 |
Intel® Processor N150 |
4 |
Up to 3.6 GHz |
6W |
DDR4 |
1 |
1 |
6 |
7 |
— |
— |
2 / 0 |
12V |
| 6 |
NUC16R-D4 VER1.1 |
Intel® Processor N250 |
4 |
Up to 3.8 GHz |
6W |
DDR4 |
1 |
1 |
6 |
7 |
— |
— |
2 / 0 |
12V |
Customization Options
- Memory and storage capacity configuration
- BIOS customization
- Logo customization
- Packaging customization
- I/O interface customization
- OEM and ODM project support
Quotation Information
For quotation requests, please provide the required processor version, memory capacity, سعة التخزين, operating system, estimated order quantity and any customization requirements. Our engineering team will recommend the most suitable configuration based on your project needs.
س1. What processor platform does the NUC16R-D4 VER1.1 support?
The NUC16R-D4 VER1.1 supports Intel® Alder Lake-N and Twin Lake-N series processors. The board integrates an Intel® Celeron N100 quad-core processor by default.
Q2. What memory specifications are supported?
The motherboard provides 1 x SODIMM slot supporting single-channel 3200MHz DDR4 memory with up to 16GB capacity.
س3. What display interfaces are available on the board?
The board features 1 x HDMI and 1 x DP display interface. It supports HDMI and DP synchronous/asynchronous display output with up to 4K 60Hz resolution.
س 4. What storage interfaces are available?
The NUC16R-D4 VER1.1 provides 1 x SATA3.0 interface and 1 x M.2 Key-M 2280/2242 PCIe/SATA SSD slot for storage expansion.
س5. Does the motherboard support Mini-PCIe expansion?
نعم. The board includes 1 x Mini-PCIe slot supporting WiFi or 4G modules. The slot can also be hardware-adjusted to support mSATA.
س6. What network features are supported?
The motherboard supports 6 x Intel® I225 or I226 2.5GbE LAN ports with Wake-on-LAN and PXE boot functions.
س7. Does the board support RS485 communication?
نعم. The motherboard provides 2 x COM interfaces. RS485 or RS422 communication can be supported through hardware adjustment on selected COM ports.
Q8. Which operating systems are supported?
The NUC16R-D4 VER1.1 supports Windows 10, ويندوز 11, وأنظمة التشغيل لينكس.
CoreIPC provides reliable industrial computing platforms with long-term product availability and flexible customization services for embedded and industrial applications.
لماذا تختار CoreIPC
- Embedded Nano-ITX platform
- 6 x 2.5GbE LAN support
- HDMI and DP display support
- Mini-PCIe expansion capability
- Wide temperature operation
- تصنيع المعدات الأصلية / ODM customization
