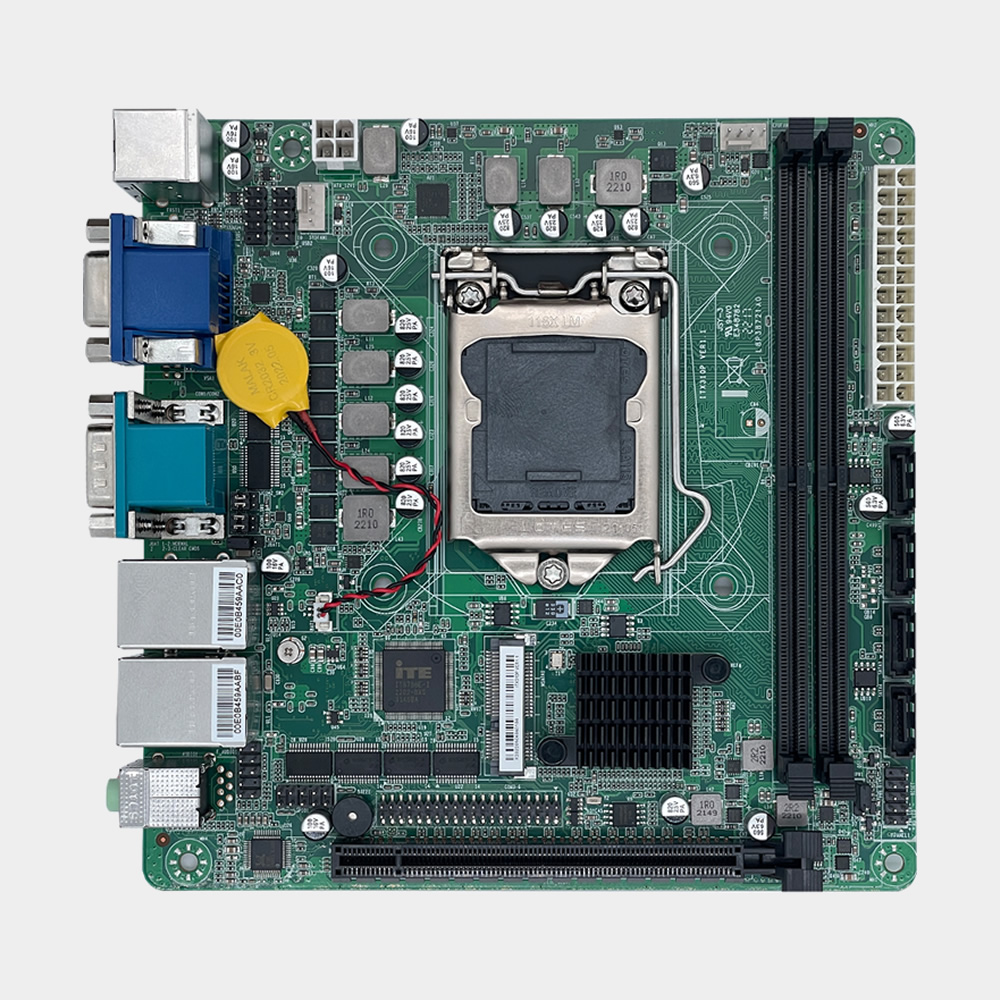

The ITX310P VER1.1 is a Mini-ITX Industrial Motherboard designed for embedded and industrial applications. Powered by Intel® 6th, 7th, 8th, and 9th Gen LGA1151 Celeron/Pentium/Core™ i3/i5/i7 processors, it provides reliable computing performance for industrial control, automation, and embedded system projects.
Designed with 6 RS232 serial ports with optional RS485 support, VGA and HDMI display interfaces, y 4 SATA3.0 interfaces, this product supports flexible system integration for industrial applications.
With a 170mm x 170mm Mini-ITX form factor, industrial-grade reliability, and flexible configuration options, the ITX310P VER1.1 provides a dependable platform for OEM and ODM projects.
Características clave
- Intel® 6th, 7th, 8th, and 9th Gen LGA1151 Platform
- Mini-ITX
- 2* LAN Gigabit Realtek RTL8111H
- VGA and HDMI Display Interfaces
- 1* Mini-PCIe Slot and 1* PCIe3.0 X16 Slot
- 4* SATA3.0 Interfaces
- ventanas 7, ventanas 10, linux
Ordering Information
The ITX310P VER1.1 is based on the Intel® B250/B365 chipset and is designed for industrial automation, visión artificial, industrial control, self-service terminals and embedded computing applications. With rich I/O interfaces, PCIe expansion capability and industrial-grade reliability, it provides a flexible platform for OEM and ODM projects.
Available Ordering Configurations
| No. |
Model |
conjunto de chips |
Memoria |
Expansión |
hdmi |
VGA |
sata |
LAN |
USB |
PS/2 |
COM/485 |
Power |
| 1 |
ITX310P VER1.1 |
Intel® B250 / B365 |
2 × DDR4 |
PCIe x16 |
1 |
1 |
4 |
2 |
10 |
1 |
6 / 2 |
ATX |
Customization Options
- Memory and storage capacity configuration
- BIOS customization
- Logo customization
- Packaging customization
- I/O interface customization
- PCIe expansion customization
- Operating system customization
- OEM and ODM project support
Quotation Information
For quotation requests, please provide the required processor model, memory capacity, storage configuration, operating system, expansion requirements, estimated order quantity and any customization requirements. Our engineering team will recommend the most suitable configuration based on your project needs.
Q1. What processor platform does the ITX310P VER1.1 support?
The ITX310P VER1.1 supports Intel® LGA1151 Celeron, Pentium, Core™ i3, i5, and i7 processors from the 6th, 7th, 8th, and 9th generations.
Q2. What memory specifications are supported?
The motherboard provides 2* DIMM slots and supports DDR4 1866/2133/2400MHz memory with a maximum capacity of up to 64GB.
Q3. What display interfaces are available on the motherboard?
The board supports 1* VGA interface and 1* HDMI1.4 interface. It also supports 4K display output through the HDMI interface.
Q4. What storage interfaces does the ITX310P VER1.1 provide?
The motherboard provides 4* SATA3.0 interfaces for storage devices. The H310C chipset version supports 3* SATA3.0 interfaces.
Q5. Does the motherboard support expansion modules?
Sí. The ITX310P VER1.1 includes 1* MSATA3.0 slot and 1* PCIe3.0 X16 expansion slot. The MSATA slot can optionally support WiFi modules.
Q6. What network features are supported?
The motherboard integrates 2* Realtek RTL8111H Gigabit LAN controllers and supports Wake-on-LAN and PXE functions.
Q7. Does the ITX310P VER1.1 support RS485 communication?
Sí. The motherboard supports 6* RS232 serial ports, and COM1 and COM2 can optionally support RS485 through hardware jumper settings and BIOS configuration.
Q8. Which operating systems are supported?
The ITX310P VER1.1 supports Windows 7, ventanas 10, and Linux operating systems.
CoreIPC provides reliable industrial computing platforms with long-term product availability and flexible customization services for embedded and industrial applications.
Why Choose CoreIPC
- Mini-ITX embedded platform
- Intel® LGA1151 processor support
- Dual Gigabit LAN ports
- RS232 and optional RS485
- MSATA and PCIe expansion
- Windows and Linux support
Soluciones de informática industrial CoreIPC
