EHL-J6412-LK VER1.0 120 incógnita 120 mm Industrial Motherboard Intel® Elkhart Lake | CoreIPC

Procesador: Intel® Celeron J6412 2.0GHz quad-core processor, TDP 10W

Plataforma: Plataforma Intel® Elkhart Lake

conjunto de chips: N / A

Factor de forma: 120mm x 120mm

Memoria: 1 x SO-DIMM slot, single-channel 3200MHz DDR4, hasta 32GB

Gráficos: Integrated Intel® UHD Graphics 10th Gen core graphics

Interfaz de visualización: 2 x HDMI, 460Hz

Soporte de pantalla: Synchronous / asynchronous display support

Almacenamiento: 1 x 7-pin SATA3.0 interface, 6Gbps; 1 x M.2 Tecla-M 2242 Ranura para SSD SATA, compatible with 2280 SSD length

Expansión: 1 x M.2 Key-E 2230 slot supporting WiFi / bluetooth; M.2 Key-M compatible with 3042 4G module

LAN: 4 x Intel I225V or I226 2.5G LAN, supports Wake-on-LAN and PXE

USB: 2 USB 3.1, 2 USB 2.0

Puertos COM: 1 x RS232 serial port, RJ45 interface form, default serial redirection 115200

RS485: N / A

Entrada de energía: CC 12 V

Temperatura de funcionamiento: -20°C a 60°C

Sistema operativo: ventanas 10 / ventanas 11 / linux

Dimensiones: 120mm x 120mm

Enviar consulta Chat en vivo

The EHL-J6412-LK VER1.0 is a 120mm x 120mm Industrial Motherboard designed for embedded and industrial applications. Powered by the Intel® Elkhart Lake Platform with an Intel® Celeron® J6412 2.0GHz quad-core processor, it provides reliable computing performance for soft router, network security, industrial control, and cloud terminal projects.

Designed with 4 x Intel I225V or I226 2.5G LAN, 1 x RS232 RJ45 COM port, 2 USB 3.1, 2 USB 2.0, 2 x HDMI 4K 60Hz display outputs, and SATA3.0 plus M.2 Key-M storage support, this product supports flexible system integration for soft router, network security, industrial control, and cloud terminal applications.

With a 120mm x 120mm board size, industrial-grade reliability, and flexible configuration options, the EHL-J6412-LK VER1.0 provides a dependable platform for OEM and ODM projects.

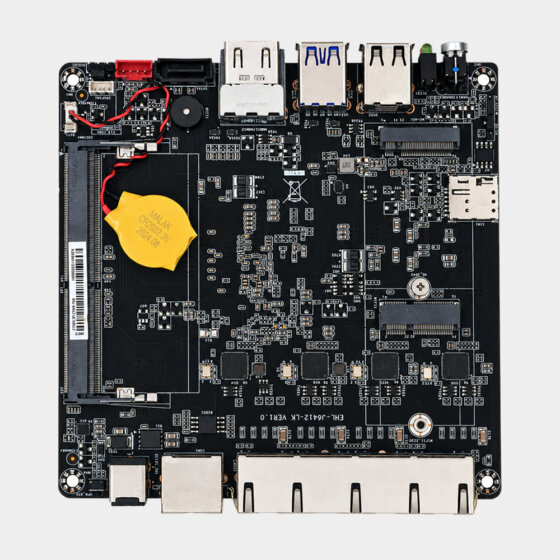

EHL-J6412-LK VER1.0 industrial motherboard top view with USB, LAN, display, memory, and expansion interface layout

Top view of the EHL-J6412-LK VER1.0 industrial motherboard showing the main PCB layout, external I/O ports, memory slot, and onboard expansion connectors.

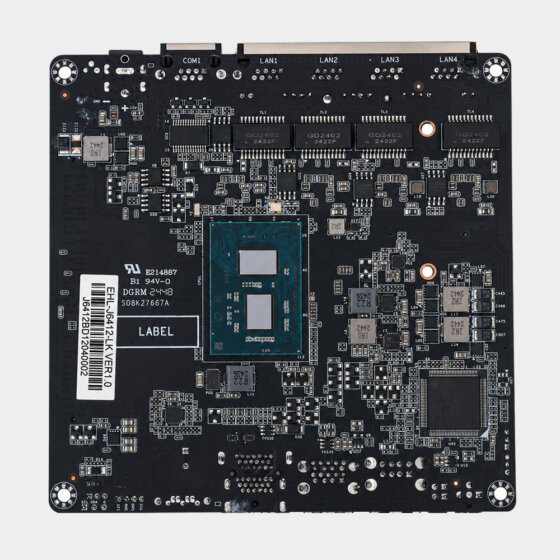

EHL-J6412-LK VER1.0 industrial motherboard bottom view with onboard processor and LAN interface layout

Bottom view of the EHL-J6412-LK VER1.0 industrial motherboard showing the processor area, circuit layout, and rear-side component placement.

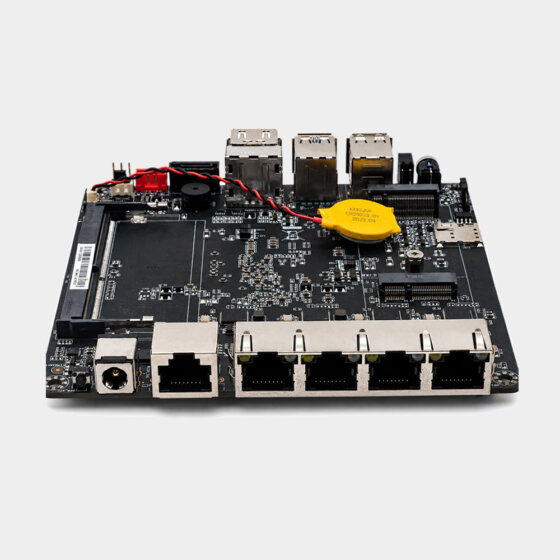

EHL-J6412-LK VER1.0 industrial motherboard LAN I/O view with multiple RJ45 Ethernet ports and onboard interface layout

LAN I/O view of the EHL-J6412-LK VER1.0 industrial motherboard showing multiple Ethernet ports, entrada de energía, and onboard expansion layout.

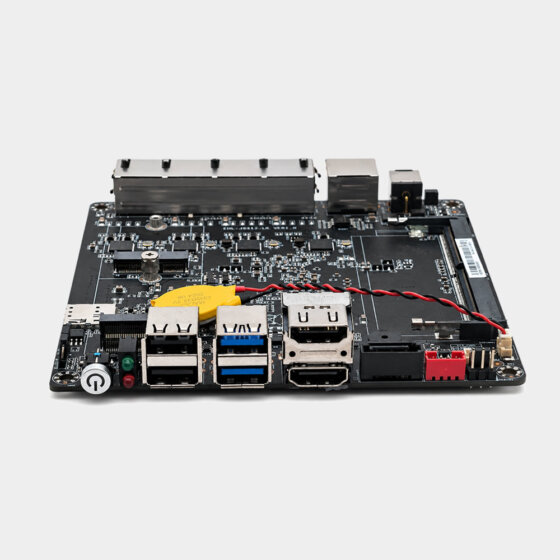

EHL-J6412-LK VER1.0 industrial motherboard front I/O view with USB, display, LAN, and power interface layout

Front I/O view of the EHL-J6412-LK VER1.0 industrial motherboard showing external interface connectors and onboard component layout.

Características clave

Intel® Elkhart Lake Platform with Intel® Celeron® J6412 2.0GHz quad-core processor
120mm x 120mm form factor
4 x Intel I225V or I226 2.5G LAN with Wake-on-LAN and PXE support
2 x HDMI ports supporting 4K 60Hz synchronous / asynchronous display
1 x M.2 Key-E 2230 slot supporting WiFi / bluetooth
1 x SATA3.0 interface and 1 x M.2 Tecla-M 2242 Ranura para SSD SATA
ventanas 10 / ventanas 11 / linux

Product Model	EHL-J6412-LK VER1.0
Factor de forma	120mm x 120mm
Procesador	Intel® Celeron J6412 2.0GHz quad-core processor, TDP 10W
CPU Platform	Plataforma Intel® Elkhart Lake
conjunto de chips	N / A
Gráficos	Integrated Intel® UHD Graphics 10th Gen core graphics
Memory Type	DDR4
Memory Slot	1 x SO-DIMM slot
Memory Capacity	Up to 32GB
Memory Frequency	3200MHz
Interfaz de visualización	2 x HDMI, 460Hz
Soporte de pantalla	Synchronous / asynchronous display support
LAN Controller	4 x Intel I225 or I226 2.5G LAN
Network Features	Wake-on-LAN and PXE support
Almacenamiento	1 x 7-pin SATA3.0 interface, 6Gbps; 1 x M.2 Tecla-M 2242 Ranura para SSD SATA, compatible with 2280 SSD length
Expansión	1 x M.2 Key-E 2230 slot supporting WiFi / bluetooth; M.2 Key-M compatible with 3042 4G module; 1 x SIM card slot
USB	2 USB 3.1, 2 USB 2.0
Serial Ports	1 x RS232 serial port, RJ45 interface form, default serial redirection 115200
LPT	N / A
PS/2	N / A
Audio Codec	N / A
Audio Interface	N / A
Amplifier	N / A
GPIO	N / A
Watchdog Timer	Hardware reset support, 256 levels, 0–255 seconds
Diseño de refrigeración	Back-mounted CPU fanless cooling design; reserved 1 x 4-pin CPU fan connector
Entrada de energía	CC 12 V
Power Mode	AT / ATX mode switching supported
Temperatura de funcionamiento	-20°C a 60°C
Storage Temperature	-30°C to 70°C
Humidity	5%–95% relative humidity, non-condensing
Sistema operativo	ventanas 10 / ventanas 11 / linux
BIOS	128Mb Flash ROM
Dimensiones	120mm x 120mm

EHL-J6412-LK User Manual Issue 1.0

Download →

CoreIPC provides reliable industrial computing platforms with long-term product availability and flexible customization services for embedded and industrial applications.

Why Choose CoreIPC

Intel® Elkhart Lake platform
Quad 2.5G LAN support
HDMI 4K display output
SATA and M.2 storage
Wi-Fi, bluetooth, and 4G expansion
Wide temperature operation

Q1. What processor platform does the EHL-J6412-LK VER1.0 motherboard support?

The EHL-J6412-LK VER1.0 is based on the Intel® Elkhart Lake Platform and integrates an Intel® Celeron J6412 2.0GHz quad-core processor with 10W TDP.

Q2. What is the maximum memory capacity?

The motherboard provides 1 x SO-DIMM slot and supports single-channel 3200MHz DDR4 memory, with a maximum capacity of 32GB.

Q3. What display interfaces are available?

The board provides 2 x HDMI interfaces supporting 4K 60Hz output and synchronous / asynchronous display support.

Q4. What storage interfaces does the motherboard provide?

The motherboard provides 1 x 7-pin SATA3.0 interface with up to 6Gbps transfer rate and 1 x M.2 Tecla-M 2242 Ranura para SSD SATA, compatible with 2280 SSD length.

Q5. What expansion options are supported?

The board provides 1 x M.2 Key-E 2230 slot for WiFi / bluetooth, and the M.2 Key-M slot is compatible with a 3042 4G module. It also includes 1 x SIM card slot.

Q6. What LAN interfaces are available?

The motherboard supports 4 x Intel I225V or I226 2.5G LAN interfaces with Wake-on-LAN and PXE support.

Q7. What serial communication interface is provided?

The board provides 1 x RS232 serial port in RJ45 interface form, with default serial redirection at 115200.

Q8. Which operating systems are supported?

The motherboard supports Windows 10, ventanas 11, and Linux operating systems.

Packing Information

Industrial Motherboard ×1
Standard motherboard packing
Accessories subject to actual order
Optional accessories available upon request
N / A
N / A
Optional accessories available upon request

Delivery Information

Standard lead time: Contact us for lead time
Bulk order lead time depends on project quantity
OEM / ODM customization supported
DHL / Unión Postal Universal / FedEx / TNT / Air / Sea shipping available
Neutral packing and customized branding supported
