NANO300 Fanless Dual LAN Dual COM Box PC | CoreIPC

Processor: Intel processor options available

Product Type: Fanless Box PC

Memory: 4GB / 8GB / 16GB / 32GB / 64GB

Storage: 64GB / 128GB / 256GB / 512GB SSD

Display Interface: HDMI, VGA

LAN: Dual Gigabit LAN

USB: 4 × USB 3.0, 2 × USB 2.0

COM Ports: 2 × COM (optional up to 4 × COM)

RS485: Supported

Wireless & Communication: WiFi, Bluetooth, 4G, GPS

GPIO: GPIO Supported (8-channel via DB15)

Expansion: DB15 GPIO Expansion

Mounting: Wall Mount

Power Input: DC 12V (optional 9–36V DC)

Operating Temperature: -20°C to 50°C

Operating System: Windows, Linux

Dimensions: 225.8 × 128 × 69.45 mm

Cooling Design: Fanless Design

Send Inquiry Live Chat

The NANO300 Dual LAN Dual COM Fanless Box PC is a Box PC designed for embedded and industrial applications. Powered by Intel processor options available, it provides reliable computing performance for industrial and embedded computing environments.

Designed with multiple USB ports and serial interfaces, Dual LAN, and storage configuration options, this system supports flexible deployment for industrial applications.

With compact dimensions 225.8 x 128 x 69.45mm, fanless chassis design, wall-mount support, flexible configuration options, and industrial-grade design, the NANO300 Dual LAN Dual COM Fanless Box PC provides a dependable platform for OEM and ODM projects.

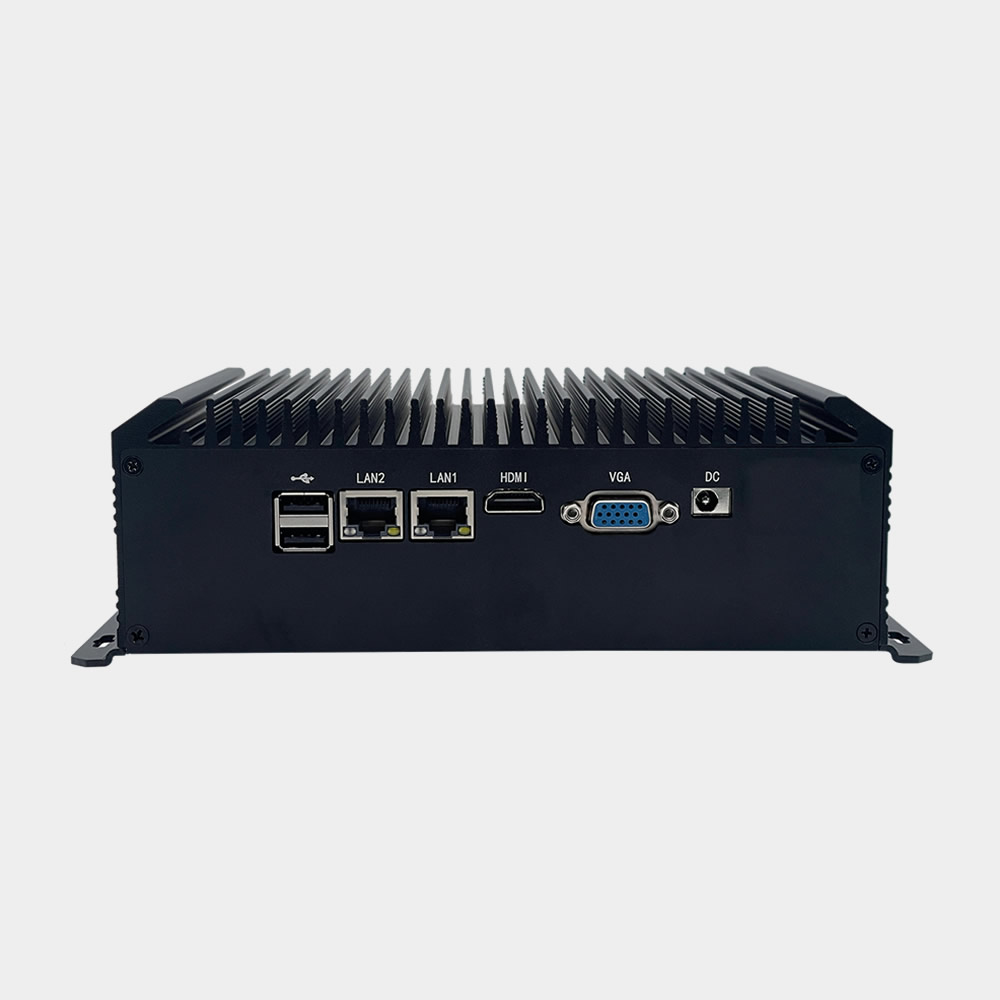

Front I/O panel of the NANO300 dual LAN dual COM fanless industrial computer showing visible USB ports, dual Ethernet ports, HDMI, VGA and DC power interface.

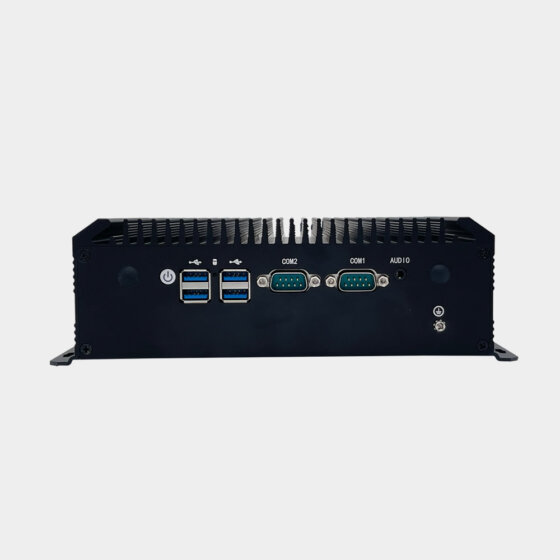

NANO300 dual LAN dual COM industrial computer rear I/O panel showing USB COM ports and audio interface

Rear I/O panel of the NANO300 industrial computer showing USB ports, serial COM interfaces and audio connectivity area.

Key Features

Intel processor options available
Box PC
Dual LAN
COM / RS485 supported
WiFi, Bluetooth, 4G, GPS
multiple storage configuration options (64–512GB SSD)
Windows / Linux

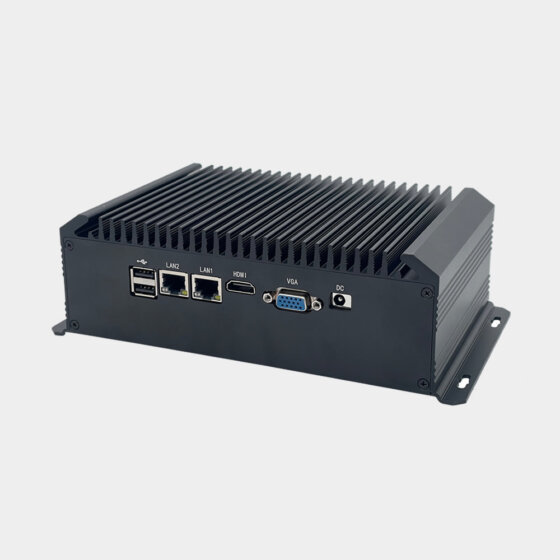

Front 45-degree angle view of the NANO300 fanless industrial computer showing compact enclosure design and external heatsink structure.

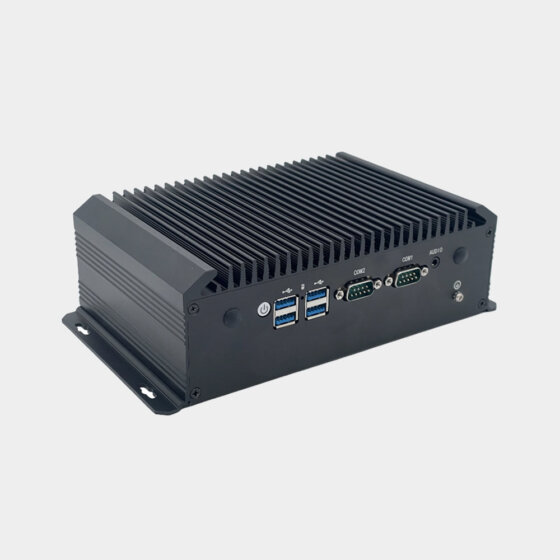

Rear angled view of the NANO300 industrial computer showing external connectivity area and fanless enclosure structure.

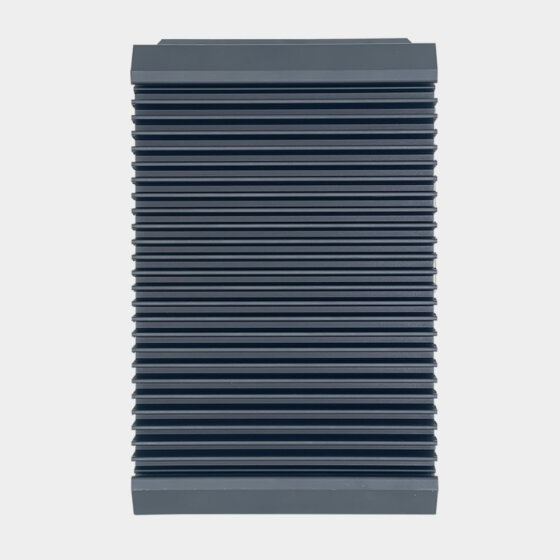

Top view of the NANO300 fanless industrial computer showing dense aluminum heatsink fins for passive thermal dissipation.

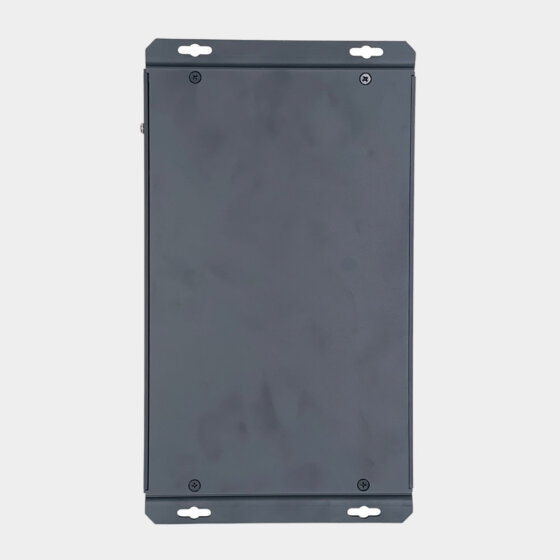

Bottom view of the NANO300 fanless industrial computer showing the metal enclosure base with mounting holes for wall installation.

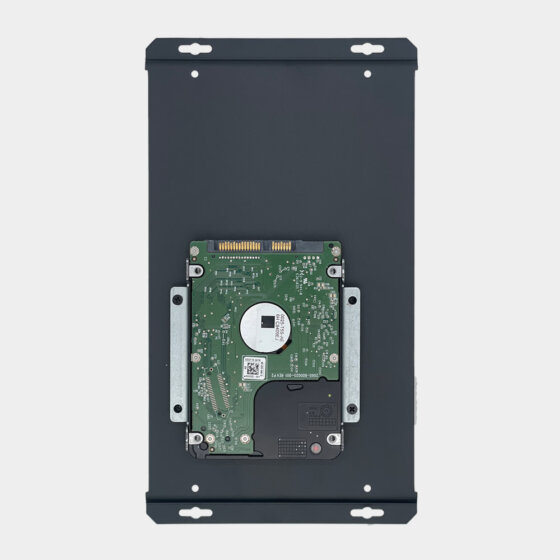

2.5-inch HDD/SSD mounting bracket for secure storage installation in industrial embedded computer systems

Product Model	NANO300 Dual LAN Dual COM
Product Type	Fanless Box PC
Processor	Intel processor options available
Processor Options	Intel Celeron N2840, J1900, J4125, J6412, N5095, N5105, Intel N100, N97, N150, Intel i3-N300, i3-N305, Intel Core U series (4th to 13th Gen U/P series options)
Memory Configuration	4GB, 8GB, 16GB, 32GB, 64GB
Storage Configuration	64GB, 128GB, 256GB, 512GB SSD
Display Interface	HDMI, VGA
LAN	Dual Gigabit LAN
USB	4 × USB 3.0, 2 × USB 2.0
Serial Ports	2 × COM (optional up to 4 × COM)
RS485	Supported
Wireless	WiFi, Bluetooth
Cellular Network	4G
GPS	GPS
GPIO	GPIO Supported (8-channel via DB15)
Expansion	DB15 GPIO Expansion
Mounting	Wall Mount
Cooling Design	Fanless Design
Power Input	DC 12V
Power Features	Wide Voltage Input (9–36V DC optional)
Operating Temperature	-20°C to 50°C
Storage Temperature	-30°C to 70°C
Humidity	5% to 95% RH, non-condensing
Operating System	Windows, Linux
Dimensions	225.8 × 128 × 69.45 mm

System Model	Processor	Memory	Storage	LAN	USB	COM / RS485	Power Input	Optional Features
NUC19D-N22-N2840	Intel® Celeron® N2840	4GB / 8GB / 16GB / 32GB / 64GB	64GB / 128GB / 256GB / 512GB SSD	Dual Gigabit LAN	6 USB (4 USB 3.0 + 2 USB 2.0)	2 COM (RS485 on COM1/2), 4 COM Optional	DC 12V	WiFi / Bluetooth / 4G / GPS, GPIO, Wide Voltage, Wall Mount
NUC19D-N22-J1900	Intel® Celeron® J1900	4GB / 8GB / 16GB / 32GB / 64GB	64GB / 128GB / 256GB / 512GB SSD	Dual Gigabit LAN	6 USB (4 USB 3.0 + 2 USB 2.0)	2 COM (RS485 on COM1/2), 4 COM Optional	DC 12V	WiFi / Bluetooth / 4G / GPS, GPIO, Wide Voltage, Wall Mount
NUC42D-N22-J4125	Intel® Celeron® J4125	4GB / 8GB / 16GB / 32GB / 64GB	64GB / 128GB / 256GB / 512GB SSD	Dual Gigabit LAN	6 USB (4 USB 3.0 + 2 USB 2.0)	2 COM (RS485 on COM1/2), 4 COM Optional	DC 12V	WiFi / Bluetooth / 4G / GPS, GPIO, Wide Voltage, Wall Mount
NUC62D-N22-J6412	Intel® Celeron® J6412	4GB / 8GB / 16GB / 32GB / 64GB	64GB / 128GB / 256GB / 512GB SSD	Dual Gigabit LAN	6 USB (4 USB 3.0 + 2 USB 2.0)	2 COM (RS485 on COM1/2), 4 COM Optional	DC 12V	WiFi / Bluetooth / 4G / GPS, GPIO, Wide Voltage, Wall Mount
NUC50D-N22-N5095	Intel® Celeron® N5095	4GB / 8GB / 16GB / 32GB / 64GB	64GB / 128GB / 256GB / 512GB SSD	Dual Gigabit LAN	6 USB (4 USB 3.0 + 2 USB 2.0)	2 COM (RS485 on COM1/2), 4 COM Optional	DC 12V	WiFi / Bluetooth / 4G / GPS, GPIO, Wide Voltage, Wall Mount
NUC50D-N22-N5105	Intel® Celeron® N5105	4GB / 8GB / 16GB / 32GB / 64GB	64GB / 128GB / 256GB / 512GB SSD	Dual Gigabit LAN	6 USB (4 USB 3.0 + 2 USB 2.0)	2 COM (RS485 on COM1/2), 4 COM Optional	DC 12V	WiFi / Bluetooth / 4G / GPS, GPIO, Wide Voltage, Wall Mount
NUC32D-N22-N100	Intel® Processor N100	4GB / 8GB / 16GB / 32GB / 64GB	64GB / 128GB / 256GB / 512GB SSD	Dual Gigabit LAN	6 USB (4 USB 3.0 + 2 USB 2.0)	2 COM (RS485 on COM1/2), 4 COM Optional	DC 12V	WiFi / Bluetooth / 4G / GPS, GPIO, Wide Voltage, Wall Mount
NUC32D-N22-N97	Intel® Processor N97	4GB / 8GB / 16GB / 32GB / 64GB	64GB / 128GB / 256GB / 512GB SSD	Dual Gigabit LAN	6 USB (4 USB 3.0 + 2 USB 2.0)	2 COM (RS485 on COM1/2), 4 COM Optional	DC 12V	WiFi / Bluetooth / 4G / GPS, GPIO, Wide Voltage, Wall Mount
NUC32D-N22-N150	Intel® Processor N150	4GB / 8GB / 16GB / 32GB / 64GB	64GB / 128GB / 256GB / 512GB SSD	Dual Gigabit LAN	6 USB (4 USB 3.0 + 2 USB 2.0)	2 COM (RS485 on COM1/2), 4 COM Optional	DC 12V	WiFi / Bluetooth / 4G / GPS, GPIO, Wide Voltage, Wall Mount
NUC32D-N22-N300	Intel® Processor i3-N300	4GB / 8GB / 16GB / 32GB / 64GB	64GB / 128GB / 256GB / 512GB SSD	Dual Gigabit LAN	6 USB (4 USB 3.0 + 2 USB 2.0)	2 COM (RS485 on COM1/2), 4 COM Optional	DC 12V	WiFi / Bluetooth / 4G / GPS, GPIO, Wide Voltage, Wall Mount
NUC32D-N22-N305	Intel® Processor i3-N305	4GB / 8GB / 16GB / 32GB / 64GB	64GB / 128GB / 256GB / 512GB SSD	Dual Gigabit LAN	6 USB (4 USB 3.0 + 2 USB 2.0)	2 COM (RS485 on COM1/2), 4 COM Optional	DC 12V	WiFi / Bluetooth / 4G / GPS, GPIO, Wide Voltage, Wall Mount
NUC12D-N22-1235U	Intel® Core™ i5-1235U	4GB / 8GB / 16GB / 32GB / 64GB	64GB / 128GB / 256GB / 512GB SSD	Dual Gigabit LAN	6 USB (4 USB 3.0 + 2 USB 2.0)	2 COM (RS485 on COM1/2), 4 COM Optional	DC 12V	WiFi / Bluetooth / 4G / GPS, GPIO, Wide Voltage, Wall Mount
NUC12D-N22-1335U	Intel® Core™ i5-1335U	4GB / 8GB / 16GB / 32GB / 64GB	64GB / 128GB / 256GB / 512GB SSD	Dual Gigabit LAN	6 USB (4 USB 3.0 + 2 USB 2.0)	2 COM (RS485 on COM1/2), 4 COM Optional	DC 12V	WiFi / Bluetooth / 4G / GPS, GPIO, Wide Voltage, Wall Mount

Technical documents for this product are being prepared and will be available soon.

CoreIPC provides reliable industrial computing platforms with long-term product availability and flexible customization services for embedded and industrial applications.

Why Choose CoreIPC

Industrial System Integration
Multiple CPU Options Support
Dual Gigabit LAN Connectivity
Industrial Serial Communication
GPIO Expansion Interface
Fanless Compact Industrial Design

Q1. What processor options are available for this system?

The system supports multiple processor options including Intel® Celeron® series (N2840, J1900, J4125, J6412, N5095, N5105), Intel® Processor series (N100, N97, N150, N300, N305), and Intel® Core™ U/P series from 4th to 13th generation.

Q2. What memory configurations are supported?

It supports memory configurations of 4GB, 8GB, 16GB, 32GB, and 64GB depending on system configuration.

Q3. What display interfaces are available?

The system provides HDMI and VGA display interfaces for external display connectivity.

Q4. What storage configurations are supported?

Storage options include 64GB, 128GB, 256GB, and 512GB SSD configurations.

Q5. Does the system support wireless or expansion features?

The system supports optional WiFi, Bluetooth, 4G, and GPS modules. It also provides DB15 GPIO expansion for industrial integration requirements.

Q6. How many LAN ports are available?

The system is equipped with dual Gigabit LAN ports for network connectivity.

Q7. Does it support RS485 communication?

Yes, RS485 is supported through COM1 and COM2 serial ports.

Q8. Which operating systems are supported?

The system supports both Windows and Linux operating systems depending on user requirements.

Packing Information

Fanless Box PC ×1
Power Adapter ×1
Power Cord ×1
WIFI plug ×1
Screws and thermal pad ×1
User manual ×1 or N/A
Driver Media N/A
Optional accessories available upon request

Delivery Information

Standard lead time: Contact us for lead time
Bulk order lead time depends on project quantity
OEM / ODM customization supported
DHL / UPS / FedEx / TNT / Air / Sea shipping available
Neutral packing and customized branding supported
