NANO300 Fanless Box PC Dual LAN Quad COM | CoreIPC

Processor: Intel Celeron and Intel Core processor options

Product Type: Fanless Box PC

Memory: 4GB / 8GB / 16GB / 32GB / 64GB

Storage: 64GB / 128GB / 256GB / 512GB

Display Interface: HDMI, VGA

LAN: Dual Gigabit LAN

USB: 4 × USB 3.0, 2 × USB 2.0

COM Ports: 2 × COM, up to 4 × COM options

RS485: Supported

Wireless & Communication: WiFi, 4G, GPS

GPIO: GPIO Supported

Expansion: N/A

Mounting: Wall Mount

Power Input: DC 12V, 9–36V optional

Operating Temperature: -20°C to 50°C

Operating System: Windows, Linux

Dimensions: 225.8 × 128.0 × 69.45 mm

Cooling Design: Fanless Design

Send Inquiry Live Chat

The NANO300 is a Fanless Box PC designed for embedded and industrial applications. Powered by Intel Celeron and Intel Core processor options, it provides reliable computing performance for industrial and embedded computing environments.

Designed with multiple USB ports and serial interfaces, Dual LAN connectivity, WiFi, Bluetooth, 4G, and GPS support, and multiple storage configuration options, this system supports flexible deployment for industrial applications.

With compact dimensions (225.8 x 128.0 x 69.45mm), fanless chassis design, wall-mount support, and flexible configuration options, the NANO300 provides a dependable platform for OEM and ODM projects.

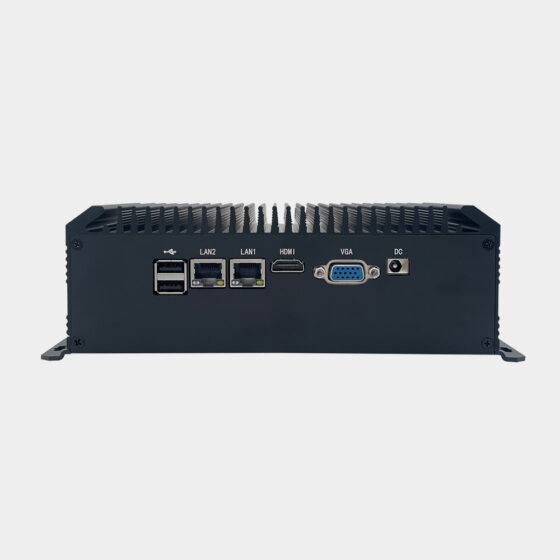

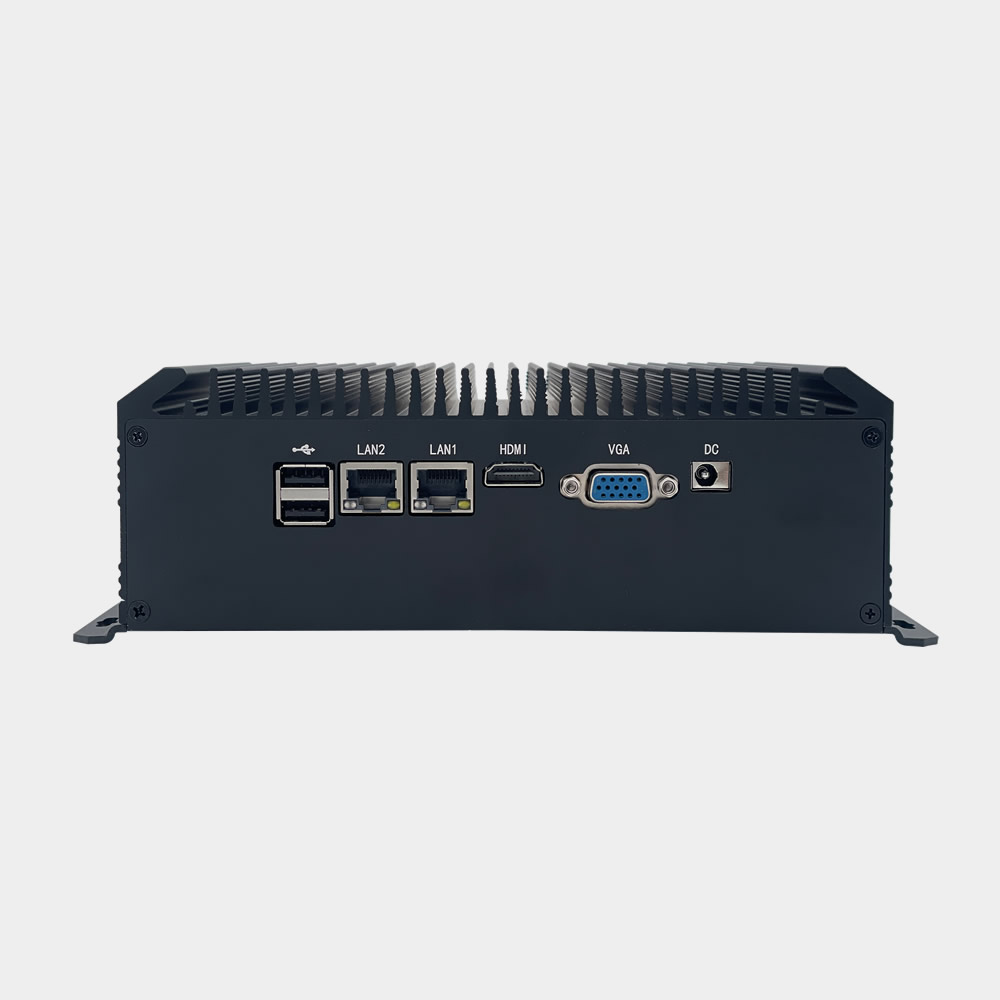

Front panel of NANO300 industrial fanless box PC showing dual Gigabit LAN ports, USB interfaces, HDMI, VGA display output, and DC power input design.

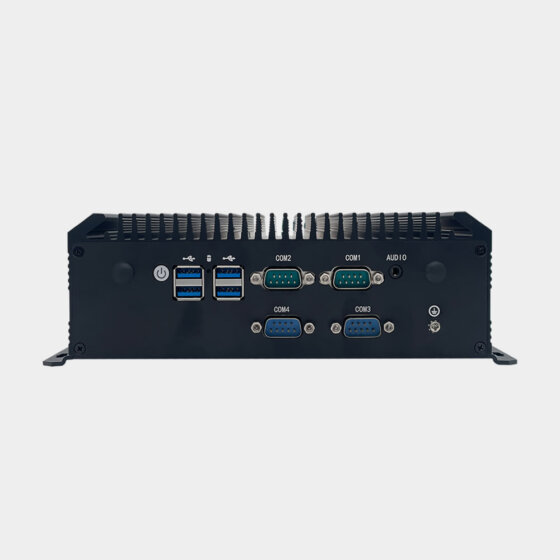

NANO300 industrial fanless box PC rear panel with COM1 to COM4 serial ports, USB ports, audio interface, and power button

Rear I/O panel of NANO300 industrial fanless box PC showing four serial COM ports, USB interfaces, audio jack, and power control button layout.

Key Features

Intel Celeron and Intel Core processor options
Fanless Box PC
Dual LAN
Dual COM with RS485 support and up to 4 COM options
WiFi, Bluetooth, 4G, GPS support
Multiple storage configuration options
Windows and Linux support

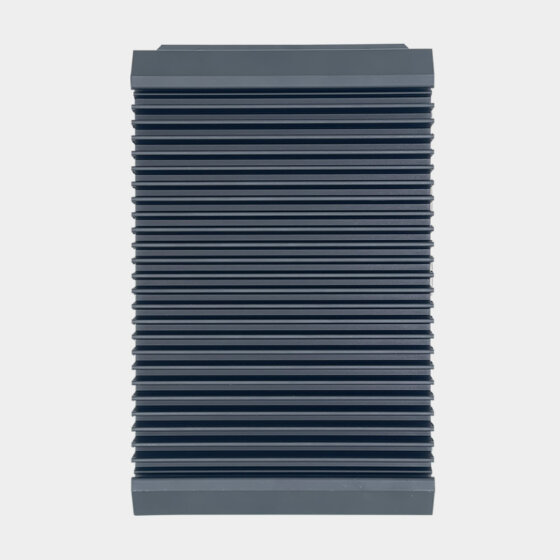

NANO300 top view with aluminum heatsink design for fanless passive cooling and industrial reliability.

NANO300 top view with aluminum heatsink design for fanless passive cooling and industrial reliability.

2.5-inch HDD/SSD mounting bracket for secure storage installation in industrial embedded computer systems

Product Model	NANO300（Dual LAN Quad COM）
Product Type	Fanless Box PC
Processor	Intel Celeron and Intel Core processor options
Processor Options	Intel N2840, J1900, J4125, J6412, N5095, N5105, N100, N97, N150, i3-N300, i3-N305, Intel Core U-Series options
Memory Configuration	4GB / 8GB / 16GB / 32GB / 64GB
Storage Configuration	64GB / 128GB / 256GB / 512GB
Display Interface	HDMI, VGA
LAN	Dual Gigabit LAN
USB	4 × USB 3.0, 2 × USB 2.0
Serial Ports	2 × COM, up to 4 × COM options
RS485	Supported
Wireless	WiFi
Cellular Network	4G
GPS	N/A
GPIO	GPIO Supported
Expansion	N/A
Mounting	Wall Mount
Cooling Design	Fanless Design
Power Input	DC 12V
Power Features	Wide Voltage Input
Operating Temperature	-20°C to 50°C
Storage Temperature	-30°C to 70°C
Humidity	5%–95% non-condensing
Operating System	Windows, Linux
Dimensions	225.8 × 128.0 × 69.45 mm

System Model	Processor	Memory	Storage	LAN	USB	COM / RS485	Power Input	Optional Features
NUC19D-N22-N2840	Intel Celeron N2840	4GB / 8GB / 16GB / 32GB / 64GB	64GB / 128GB / 256GB / 512GB	Dual Gigabit LAN / Optional Single LAN	6 USB (4 × USB 3.0 + 2 × USB 2.0)	2 COM Default, 4 COM Optional, RS485 Supported (COM1/2)	DC 12V, 9–36V Optional	WiFi, Bluetooth, 4G, GPS, GPIO, Wide Voltage, Wall Mount
NUC19D-N22-J1900	Intel Celeron J1900	4GB / 8GB / 16GB / 32GB / 64GB	64GB / 128GB / 256GB / 512GB	Dual Gigabit LAN / Optional Single LAN	6 USB (4 × USB 3.0 + 2 × USB 2.0)	2 COM Default, 4 COM Optional, RS485 Supported (COM1/2)	DC 12V, 9–36V Optional	WiFi, Bluetooth, 4G, GPS, GPIO, Wide Voltage, Wall Mount
NUC42D-N22-J4125	Intel Celeron J4125	4GB / 8GB / 16GB / 32GB / 64GB	64GB / 128GB / 256GB / 512GB	Dual Gigabit LAN / Optional Single LAN	6 USB (4 × USB 3.0 + 2 × USB 2.0)	2 COM Default, 4 COM Optional, RS485 Supported (COM1/2)	DC 12V, 9–36V Optional	WiFi, Bluetooth, 4G, GPS, GPIO, Wide Voltage, Wall Mount
NUC62D-N22-J6412	Intel Celeron J6412	4GB / 8GB / 16GB / 32GB / 64GB	64GB / 128GB / 256GB / 512GB	Dual Gigabit LAN / Optional Single LAN	6 USB (4 × USB 3.0 + 2 × USB 2.0)	2 COM Default, 4 COM Optional, RS485 Supported (COM1/2)	DC 12V, 9–36V Optional	WiFi, Bluetooth, 4G, GPS, GPIO, Wide Voltage, Wall Mount
NUC50D-N22-N5095	Intel Celeron N5095	4GB / 8GB / 16GB / 32GB / 64GB	64GB / 128GB / 256GB / 512GB	Dual Gigabit LAN / Optional Single LAN	6 USB (4 × USB 3.0 + 2 × USB 2.0)	2 COM Default, 4 COM Optional, RS485 Supported (COM1/2)	DC 12V, 9–36V Optional	WiFi, Bluetooth, 4G, GPS, GPIO, Wide Voltage, Wall Mount
NUC50D-N22-N5105	Intel Celeron N5105	4GB / 8GB / 16GB / 32GB / 64GB	64GB / 128GB / 256GB / 512GB	Dual Gigabit LAN / Optional Single LAN	6 USB (4 × USB 3.0 + 2 × USB 2.0)	2 COM Default, 4 COM Optional, RS485 Supported (COM1/2)	DC 12V, 9–36V Optional	WiFi, Bluetooth, 4G, GPS, GPIO, Wide Voltage, Wall Mount
NUC32D-N22-N100	Intel Processor N100	4GB / 8GB / 16GB / 32GB / 64GB	64GB / 128GB / 256GB / 512GB	Dual Gigabit LAN / Optional Single LAN	6 USB (4 × USB 3.0 + 2 × USB 2.0)	2 COM Default, 4 COM Optional, RS485 Supported (COM1/2)	DC 12V, 9–36V Optional	WiFi, Bluetooth, 4G, GPS, GPIO, Wide Voltage, Wall Mount
NUC32D-N22-N97	Intel Processor N97	4GB / 8GB / 16GB / 32GB / 64GB	64GB / 128GB / 256GB / 512GB	Dual Gigabit LAN / Optional Single LAN	6 USB (4 × USB 3.0 + 2 × USB 2.0)	2 COM Default, 4 COM Optional, RS485 Supported (COM1/2)	DC 12V, 9–36V Optional	WiFi, Bluetooth, 4G, GPS, GPIO, Wide Voltage, Wall Mount
NUC32D-N22-N150	Intel Processor N150	4GB / 8GB / 16GB / 32GB / 64GB	64GB / 128GB / 256GB / 512GB	Dual Gigabit LAN / Optional Single LAN	6 USB (4 × USB 3.0 + 2 × USB 2.0)	2 COM Default, 4 COM Optional, RS485 Supported (COM1/2)	DC 12V, 9–36V Optional	WiFi, Bluetooth, 4G, GPS, GPIO, Wide Voltage, Wall Mount
NUC32D-N22-N300	Intel Processor i3-N300	4GB / 8GB / 16GB / 32GB / 64GB	64GB / 128GB / 256GB / 512GB	Dual Gigabit LAN / Optional Single LAN	6 USB (4 × USB 3.0 + 2 × USB 2.0)	2 COM Default, 4 COM Optional, RS485 Supported (COM1/2)	DC 12V, 9–36V Optional	WiFi, Bluetooth, 4G, GPS, GPIO, Wide Voltage, Wall Mount
NUC32D-N22-N305	Intel Processor i3-N305	4GB / 8GB / 16GB / 32GB / 64GB	64GB / 128GB / 256GB / 512GB	Dual Gigabit LAN / Optional Single LAN	6 USB (4 × USB 3.0 + 2 × USB 2.0)	2 COM Default, 4 COM Optional, RS485 Supported (COM1/2)	DC 12V, 9–36V Optional	WiFi, Bluetooth, 4G, GPS, GPIO, Wide Voltage, Wall Mount

Technical documents for this product are being prepared and will be available soon.

CoreIPC provides reliable industrial computing platforms with long-term product availability and flexible customization services for embedded and industrial applications.

Why Choose CoreIPC

Compact Industrial Design
Fanless Design
Dual LAN Connectivity
Industrial Serial Communication
GPIO Integration
Wall Mount Installation

Q1. What processor options are available?

The system supports Intel Celeron and Intel Core processor options, including multiple low-power and mobile CPU platforms.

Q2. What memory configurations are supported?

Memory configurations support 4GB, 8GB, 16GB, 32GB, and 64GB depending on system configuration.

Q3. What display interfaces are available?

The system provides HDMI and VGA display interfaces for industrial application requirements.

Q4. What storage configurations are supported?

Storage options include 64GB, 128GB, 256GB, and 512GB configurations.

Q5. Does the system support wireless or expansion features?

Optional wireless modules support WiFi, Bluetooth, 4G, and GPS. The system also provides DB15-based GPIO expansion functionality.

Q6. How many LAN ports are available?

The system is equipped with dual Gigabit LAN ports for network connectivity.

Q7. Does it support RS485 and how many COM ports are available?

It provides 2 COM ports by default, expandable up to 4 COM ports, and RS485 is supported on COM1/COM2.

Q8. Which operating systems are supported?

The system supports Windows and Linux operating systems.

Packing Information

Fanless Box PC ×1
Standard system packing
WiFi plug, screws, thermal pads
Accessories subject to actual order
User manual ×1 or N/A
N/A
Optional accessories available upon request

Delivery Information

Contact us for lead time
Bulk order lead time depends on project quantity
OEM / ODM customization supported
DHL / UPS / FedEx / TNT / Air / Sea shipping available
Neutral packing and customized branding supported
