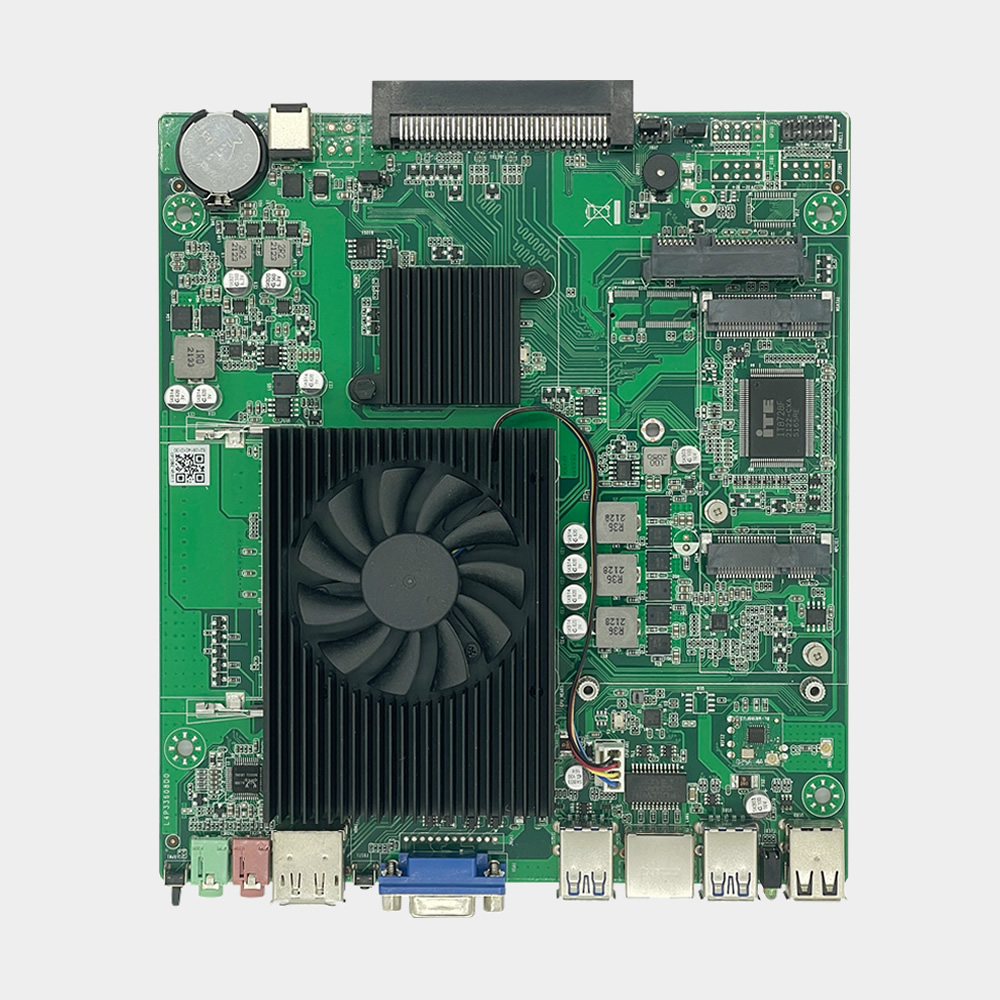

The OPS86C VER2.0 is an OPS Module Industrial Motherboard designed for embedded and industrial applications. Powered by Intel® Haswell-M Platform, it provides reliable computing performance for industrial control, automation, and embedded system projects.
Designed with USB3.0, USB2.0, كوم, Gigabit LAN, and audio interfaces, VGA, اتش دي ام اي, and DP display support, and SATA3.0 and mSATA storage support, this product supports flexible system integration for commercial display, رؤية الآلة, medical instruments, industrial control, financial equipment, and cloud terminal applications.
With 170mm x 190mm compact board design, industrial-grade reliability, وخيارات التكوين المرنة, the OPS86C VER2.0 provides a dependable platform for OEM and ODM projects.
الميزات الرئيسية
- Intel® Haswell-M Platform
- OPS Module
- 1* Gigabit LAN
- VGA, اتش دي ام اي, and DP display support
- Mini-PCIe and M.2 Key-E expansion support
- SATA3.0 and mSATA storage support
- Windows 7/Windows 10/Linux
طلب المعلومات
The OPS86C VER2.0 is based on the Intel® HM86 chipset and is designed for OPS digital signage, interactive displays, smart education systems and embedded computing applications. It provides flexible expansion capabilities and reliable long-term operation.
Available Ordering Configurations
| No. |
نموذج |
شرائح |
ذاكرة |
اتش دي ام اي |
VGA |
DP |
لان |
USB |
PS/2 |
LPT |
COM/485 |
Power |
| 1 |
OPS86C VER2.0 |
Intel® HM86 |
DDR3 |
1 |
1 |
1 |
1 |
10 |
— |
— |
— |
12–19V |
Customization Options
- Memory and storage capacity configuration
- BIOS customization
- Logo customization
- Packaging customization
- I/O interface customization
- OPS project customization
- OEM and ODM project support
Quotation Information
For quotation requests, please provide the required processor configuration, memory capacity, سعة التخزين, operating system, estimated order quantity and any customization requirements. Our engineering team will recommend the most suitable solution based on your project needs.
س1. What processor platform does the OPS86C VER2.0 support?
The OPS86C VER2.0 supports Intel® Haswell 4th Generation FCPGA947 Pentium, Celeron, i3, i5, and i7 M series processors based on the Intel® Haswell-M platform.
Q2. What memory specifications are supported?
The board provides 1* SO-DIMM slot supporting DDR3L 1600/1333MHz memory with a maximum capacity of up to 16GB.
س3. What display interfaces are available on the motherboard?
The OPS86C VER2.0 supports VGA, اتش دي ام اي, and DP display interfaces, مشتمل 1* VGA, 2* اتش دي ام اي, و 1* DP output.
س 4. What storage interfaces does the board provide?
The motherboard supports 1* SATA3.0 interface for 2.5-inch storage devices and 1* mSATA3.0 slot for storage expansion.
س5. Does the OPS86C VER2.0 support expansion modules?
نعم. The board supports 1* Mini-PCIe slot for WiFi or 4G modules and 1* M.2 Key-E slot for WiFi modules.
س6. What networking features are supported?
The motherboard integrates 1* Realtek RTL8111H Gigabit LAN controller with Wake-on-LAN and PXE support.
س7. What serial communication interfaces are available?
The OPS86C VER2.0 supports 2* RS232 serial ports for industrial communication applications.
Q8. Which operating systems are supported?
The board supports Windows 7, ويندوز 10, وأنظمة التشغيل لينكس.
CoreIPC provides reliable industrial computing platforms with long-term product availability and flexible customization services for embedded and industrial applications.
