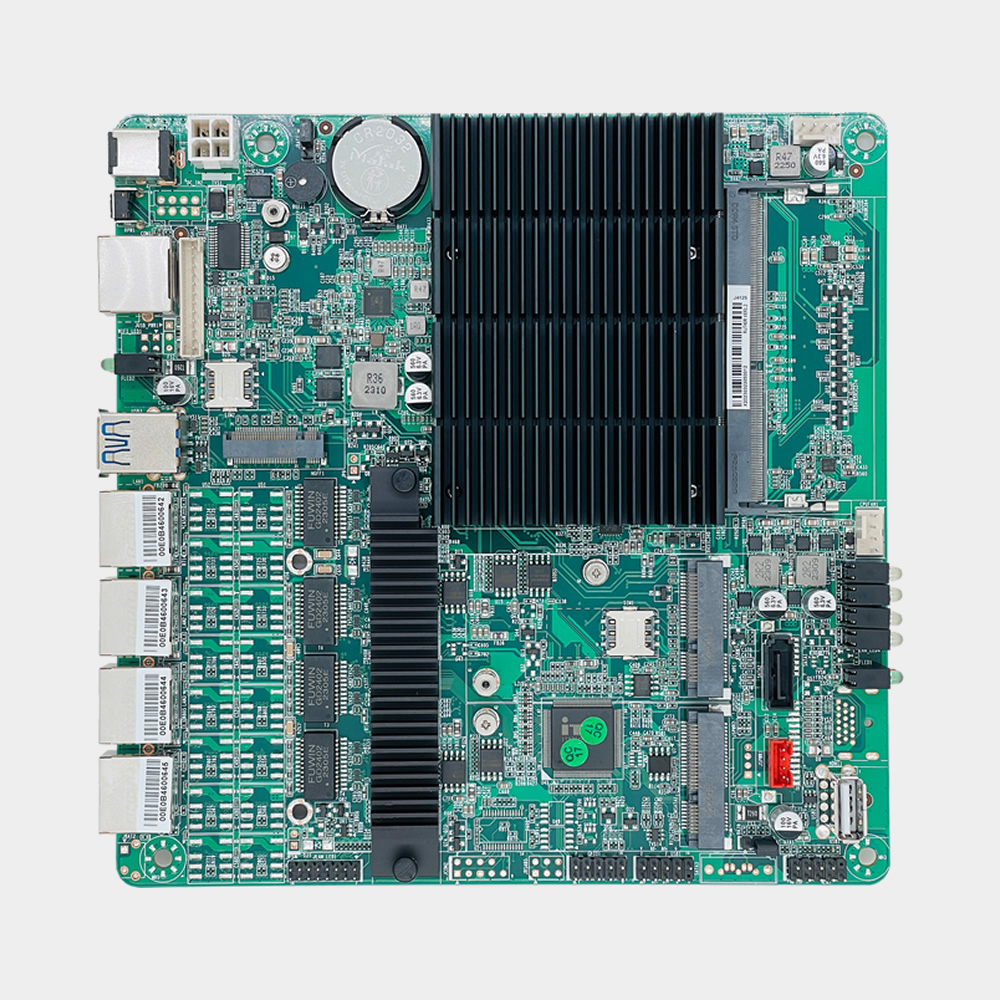

The RUT40R VER 1.2 is a Mini-ITX Industrial Motherboard designed for embedded and industrial applications. Powered by Intel® Gemini Lake-R Platform, it provides reliable computing performance for industrial control, automation, and embedded system projects.
Designed with 4* 2.5G RJ45 LAN, USB3.0, RS232 and optional RS485 interfaces, VGA and optional HDMI display support, and SATA3.0, MSATA, and M.2 Key-B storage and expansion support, this product supports flexible system integration for soft routing, network security, cloud terminal, and communication control applications.
With 170mm x 170mm Mini-ITX form factor, industrial-grade reliability, وخيارات التكوين المرنة, the RUT40R VER 1.2 provides a dependable platform for OEM and ODM projects.
الميزات الرئيسية
- Intel® Gemini Lake-R Platform
- ميني آي تي إكس
- 4* 2.5G RJ45 LAN
- 1* VGA, 1* اتش دي ام اي (optional)
- 1* Mini-PCIe, 1* M.2 Key-B
- 1* SATA3.0, 1* MSATA3.0
- Windows 10/Linux/ROS/iKuai
طلب المعلومات
The RUT40R VER1.1 is powered by the Intel® Celeron® J4125 processor, providing a compact and reliable platform for network security, industrial automation, حوسبة الحافة, industrial gateways and communication applications.
Available Ordering Configurations
| No. |
نموذج |
CPU |
Cores |
Frequency |
ذاكرة |
اتش دي ام اي |
VGA |
توسع |
لان |
USB |
PS/2 |
COM/485 |
Power |
| 1 |
RUT40R VER1.1 |
Intel® Celeron® J4125 |
4 |
2.0 GHz |
DDR4 |
— |
1 |
3 |
4 |
5 |
— |
1 / 0 |
12V |
Customization Options
- Memory and storage capacity configuration
- BIOS customization
- Logo customization
- Packaging customization
- I/O interface customization
- Expansion interface customization
- OEM and ODM project support
Quotation Information
For quotation requests, please provide the required processor version, memory capacity, سعة التخزين, operating system, estimated order quantity and any customization requirements. Our engineering team will recommend the most suitable configuration based on your project needs.
س1. What processor platform does the RUT40R VER 1.2 يدعم?
The RUT40R VER 1.2 supports the Intel® Gemini Lake-R platform and integrates an Intel® Celeron J4125 quad-core processor running at 2.0GHz.
Q2. What memory specifications are supported?
The motherboard provides 1* SODIMM slot supporting single-channel 2400MHz DDR4 memory with a maximum capacity of 16GB.
س3. What display interfaces are available on the board?
The board supports 1* VGA interface and 1* HDMI interface. The HDMI interface is optional depending on the configuration.
س 4. What storage interfaces does the RUT40R VER 1.2 provide?
The board supports 1* MSATA3.0 slot, 1* SATA3.0 interface, and an optional 2.5-inch SATA3.0 HDD interface.
س5. Does the motherboard support Mini-PCIe or M.2 expansion?
نعم. The board supports 1* Mini-PCIe slot for WiFi or 4G modules and 1* M.2 Key-B slot for 5G modules.
س6. What LAN features are available on this motherboard?
The motherboard supports 4* Intel i225 or i226 2.5G LAN interfaces with optional 2-group BYPASS function, Wake-on-LAN, and PXE support.
س7. Does the board support RS232 and RS485 communication?
نعم. The board supports 2* RS232 serial ports and optional 2* RS485 interfaces for industrial communication applications.
Q8. Which operating systems are supported?
The motherboard supports Windows 10, لينكس, ROS, and 爱快 operating systems.
CoreIPC provides reliable industrial computing platforms with long-term product availability and flexible customization services for embedded and industrial applications.
لماذا تختار CoreIPC
- Industrial-grade motherboard platform
- Mini-ITX embedded design
- Rich industrial I/O
- Flexible Mini-PCIe expansion
- RS485 communication support
- Wide temperature operation
حلول الحوسبة الصناعية CoreIPC
