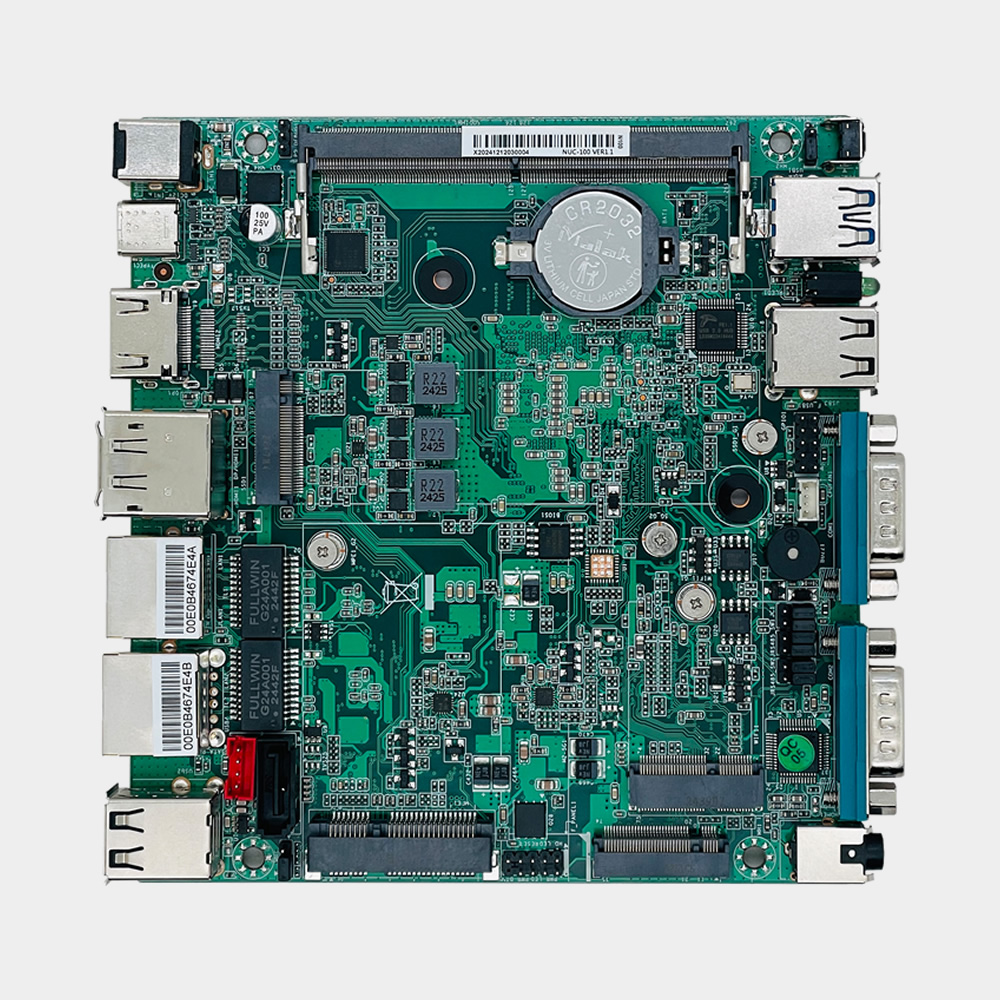

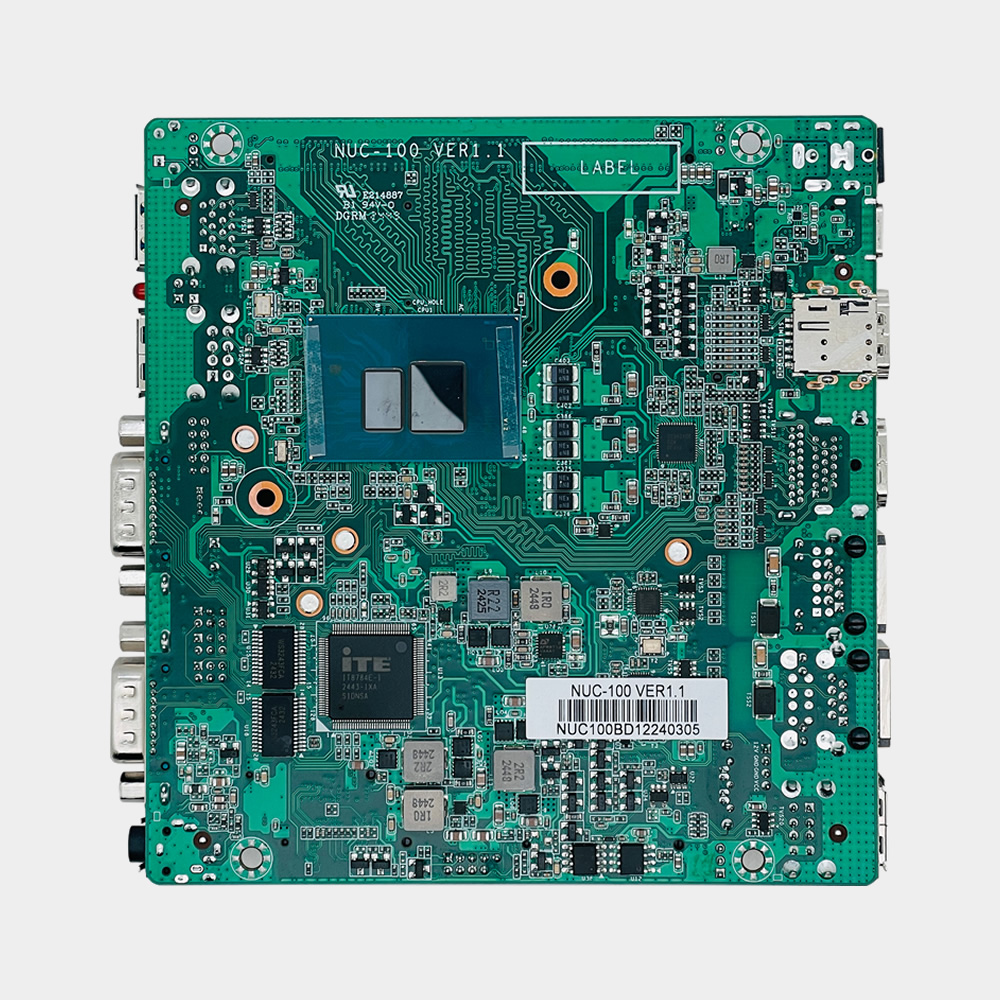

NUC-100 VER1.1 is a 120mm × 120mm NUC Embedded Board based on the Intel® Elkhart Lake platform. It is designed for industrial control, الحوسبة المدمجة, network security, and intelligent terminal applications, providing a reliable and cost-effective platform for industrial system integration.
The board supports dual Gigabit Ethernet ports, اتش دي ام اي, منفذ العرض, and USB Type-C display outputs, offering flexible connectivity for multi-display and industrial communication requirements. ساتا 3.0 and M.2 storage interfaces enable scalable storage configurations to meet various embedded computing needs.
With its compact form factor and rich I/O design, the NUC-100 VER1.1 is well suited for industrial automation, soft routing, cloud terminals, self-service kiosks, edge computing devices, and OEM/ODM embedded projects requiring long-term stability and flexible deployment.
الميزات الرئيسية
- Intel® Elkhart Lake Platform
- 12×12 NUC
- Dual Gigabit LAN
- اتش دي ام اي, DP, and Type-C display support
- M.2 Key-B, M.2 Key-E, and Mini PCIe expansion
- SATA3.0 and M.2 Key-M storage support
- ويندوز 10, ويندوز 11, and Linux
طلب المعلومات
The NUC-100 VER1.1 is available with multiple Intel® processor options, including N95, N100, N200, i3-N305, N150, N250, N350 and N355. Customers can select the most suitable configuration based on performance, power consumption and project requirements.
Available Ordering Configurations
| No. |
نموذج |
CPU |
Cores |
Frequency |
TDP |
ذاكرة |
اتش دي ام اي |
DP |
Type-C |
لان |
USB |
COM/485 |
Power |
| 1 |
NUC-100 VER1.1 |
N95 |
4 |
Up to 3.4 GHz |
15W |
DDR5 |
2 |
1 |
1 |
2 |
7 |
2 / 2 |
12V |
| 2 |
NUC-100 VER1.1 |
N100 |
4 |
Up to 3.4 GHz |
6W |
DDR5 |
2 |
1 |
1 |
2 |
7 |
2 / 2 |
12V |
| 3 |
NUC-100 VER1.1 |
N200 |
4 |
Up to 3.7 GHz |
6W |
DDR5 |
2 |
1 |
1 |
2 |
7 |
2 / 2 |
12V |
| 4 |
NUC-100 VER1.1 |
i3-N305 |
8 |
Up to 3.8 GHz |
15W |
DDR5 |
2 |
1 |
1 |
2 |
7 |
2 / 2 |
12V |
| 5 |
NUC-100 VER1.1 |
N150 |
4 |
Up to 3.6 GHz |
6W |
DDR5 |
2 |
1 |
1 |
2 |
7 |
2 / 2 |
12V |
| 6 |
NUC-100 VER1.1 |
N250 |
4 |
Up to 3.8 GHz |
6W |
DDR5 |
2 |
1 |
1 |
2 |
7 |
2 / 2 |
12V |
| 7 |
NUC-100 VER1.1 |
N350 |
8 |
Up to 3.9 GHz |
7W |
DDR5 |
2 |
1 |
1 |
2 |
7 |
2 / 2 |
12V |
| 8 |
NUC-100 VER1.1 |
N355 |
8 |
Up to 3.9 GHz |
15W |
DDR5 |
2 |
1 |
1 |
2 |
7 |
2 / 2 |
12V |
Customization Options
- Memory and storage capacity configuration
- BIOS customization
- Logo and packaging customization
- I/O interface customization
- OEM and ODM project support
Quotation Information
For quotation requests, please provide the required CPU version, memory capacity, سعة التخزين, operating system, estimated order quantity and any customization requirements.
س1. What processor platform does the NUC-100 VER1.1 support?
The NUC-100 VER1.1 supports the Intel® Alder Lake-N platform and is compatible with Intel® Alder Lake-N series processors including Intel® Celeron N100.
Q2. What memory specifications are supported?
The board provides 1* SODIMM slot supporting single-channel DDR5 memory up to 16GB with a maximum frequency of 4800MHz.
س3. What display interfaces are available on the board?
The motherboard supports HDMI, DP, and Type-C display interfaces. All display outputs support up to 4K60Hz resolution.
س 4. What storage interfaces does the NUC-100 VER1.1 provide?
The board supports 1* SATA3.0 interface and 1* M.2 Key-M 2280 PCIe/SATA SSD slot for storage expansion.
س5. Does the motherboard support wireless or cellular expansion?
نعم. The board supports 1* M.2 Key-E for WiFi/BT, 1* M.2 Key-B for 5G, و 1* Mini PCIe slot for WiFi/BT/4G modules.
س6. What network features are supported?
The NUC-100 VER1.1 provides 2* Realtek Gigabit LAN ports and supports Wake-on-LAN and PXE functions.
س7. Does the board support RS485 communication?
نعم. The motherboard provides 2* DB9 serial ports. COM1 and COM2 support RS232 by default and can be configured for RS485 through jumper settings.
Q8. Which operating systems are supported?
The board supports Windows 10, ويندوز 11, وأنظمة التشغيل لينكس.
